Any idea how to connect Vx3 receiver to fsesc 75350 with only one uart port which is occupied already by the the Bluetooth module

EFOIL.builders Electronics (ESC, remote, batteries)
1

Any idea how to connect Vx3 receiver to fsesc 75350 which has only one uart port that is occupied by the the Bluetooth module . I can probably use the comm port but then I have to modify somehow one of the cables that came with the vx3 and I’m afraid I may destroy the controller if I make a mistake in my cable modification. I’m sure somebody have been on this path before me. Thank you in advance

2

I do not have an answer but will soon face the same issue so if you find out, let us know how you did it!

3

There should be a cable in your VX3 package that you can use.

Look at wiring diagram for VX3 and same for Comm port of vesc.

The vesc end of cable will have a connector that fits the comm port. It should have 4 wires that supply the TX, RX, GRD and power the receiver needs. Configure VESC for UART control of remote

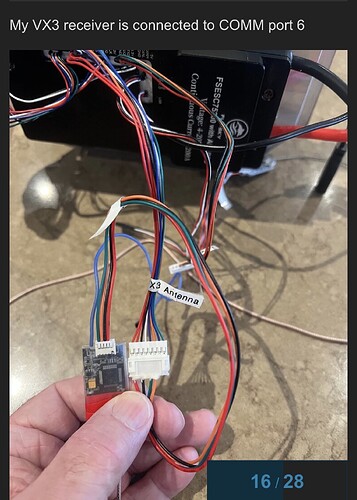

IMG_4800
IMG_48001125×1572 306 KB

4

This is already taken by the Bluetooth module and as far as i know just connecting additional wires to it for the receiver will not work. You showed a simple connection between RX and VESC - which is fine but we need to connect bluetooth module on it as well somehow

5

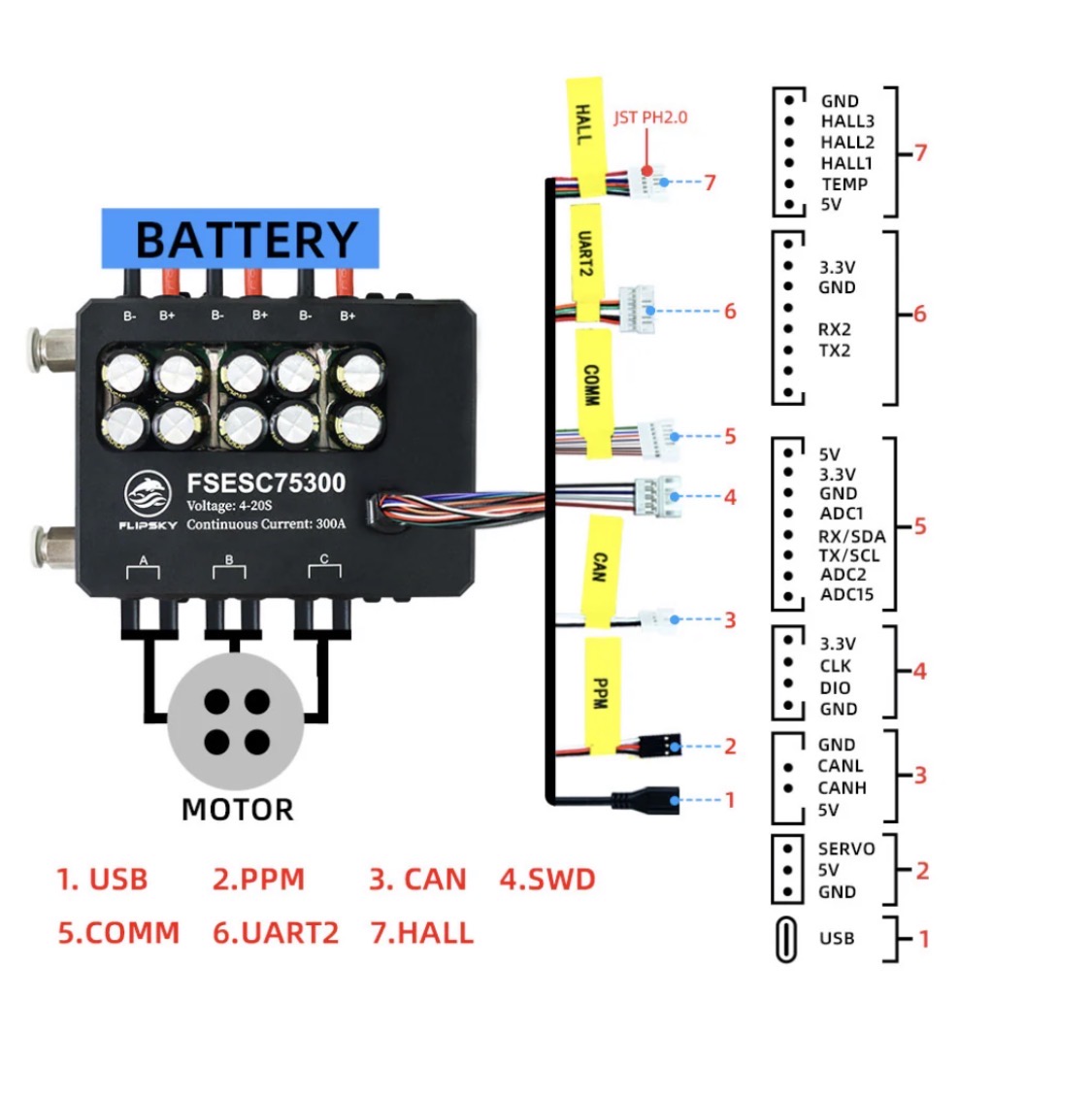

There are 2 different rx/tx pairs on the vesc labelled 4 and 6 on the diagram… Mine is all taped up but I have the bt and receiver working as you need. You just need to find the correct cable in the supplied packet. I thnk there are little manuals with he info included.

6
7

Well I was just answering @Trikefloats question as he said his Bluetooth was already connected :face_with_raised_eyebrow:

The Bluetooth and remote receiver both require a TX and RX pair plus GRD and power. The Flipsky receiver diagram shows it requires 5V and I think the Bluetooth module would work at either 3.3 or 5V

I don’t use the Flipsky 75300 but assuming you are and that you are using Flipsky Bluetooth you have two ports on the VESC that have those capabilities ports 5 and 6 in the diagram.

As @windego says just find the correct cable and connect them up.

IMG_4801
IMG_48011125×1134 130 KB

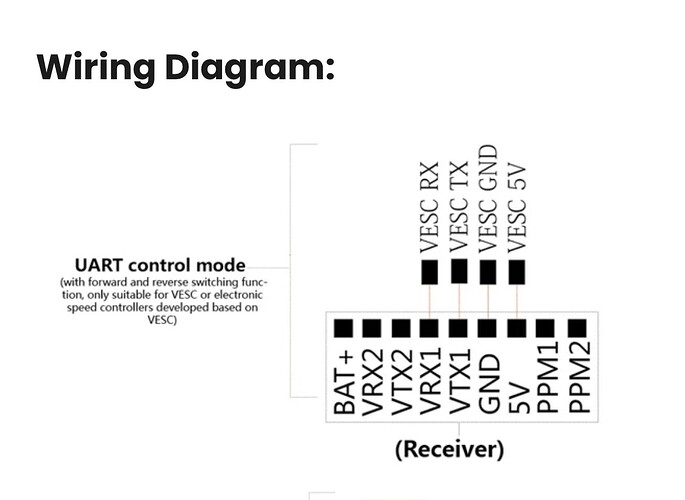

IMG_4802
IMG_48021125×820 68.3 KB

8

Thank you for the picture. It looks like it’s going to work. Not tested it yet but everything fits. I’m still building the battery pack. Thanks again
