Budget vacuum pump with vacuum level control

I built and used this inexpensive vacuum pump setup for vacuum bagging.

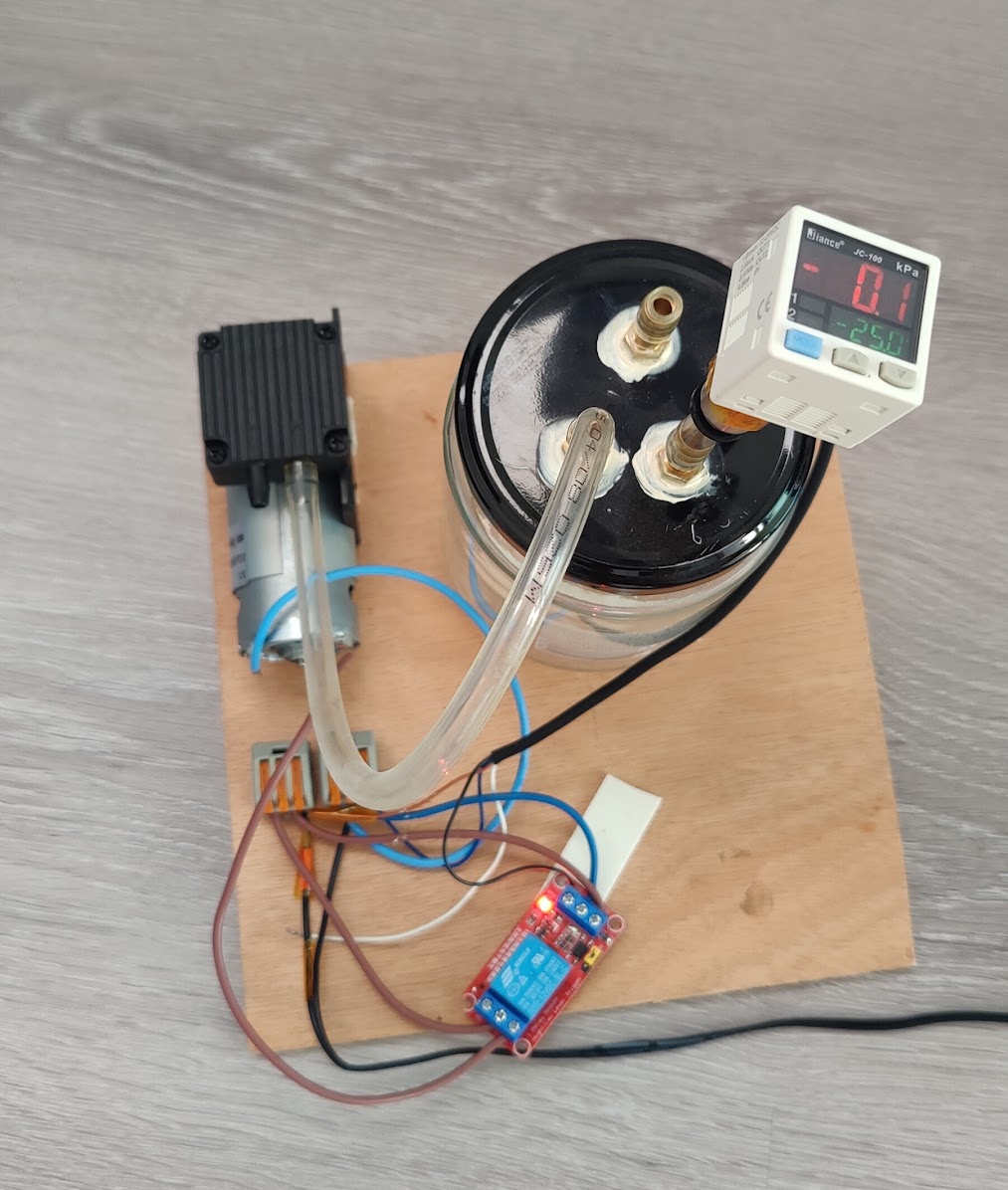

It consists of:

  • Mini 12V DC vacuum pump, 10 L/min, -70 kPa, from local store, search for “mini dc vacuum pump 12v” on aliexpress ($10)

  • Vacuum controller with hysteresis, search for DP101-PNP ($10)

  • Relay, 1 Channel Relay Module 12v ($2)

  • Glass jar (free)

  • PU Pipe 5\8mm

  • M8/6mm connectors 3pcs (Male Thread Hose Barb Tail EndFitting Adapter Connector)

  • Pneumatic Internal Thread Straight Through 8mm Barb Fitting

    Props:

  • It can actually reach -70 kPa and run for at least 5 hours without any problems.

  • Total cost: $22!

  • Supports hysteresis

  • Very silent

9 Likes

This is really cool! Can you share the components (pump, controller) used?

I have updated my topic.

Cool.

Does it have good flow?.

I have a lab diaphragm electric pump from amazon that works well with a perfect bag but the tiniest leak will prevent it from getting vacuum press.

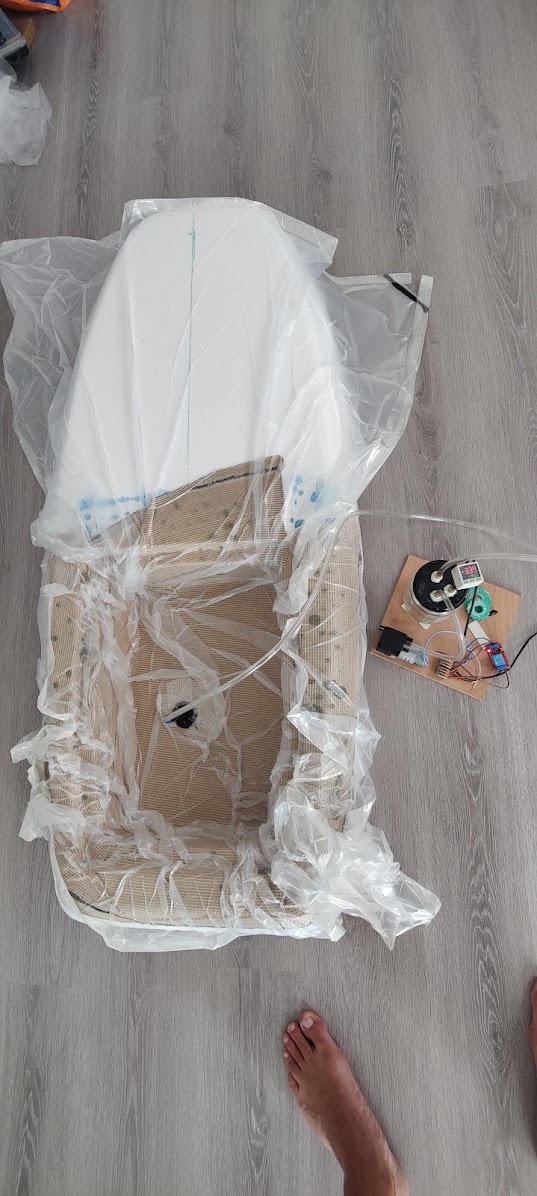

It was my first experience with epoxy and vacuum bag. I used polyethylene film from garden store and adhesive tape from DIY store. I did three items - board 160x65, battery case and latch without any problem. In the last case it was a small hole somewhere, but vacuum meter showed -50 all the time.
