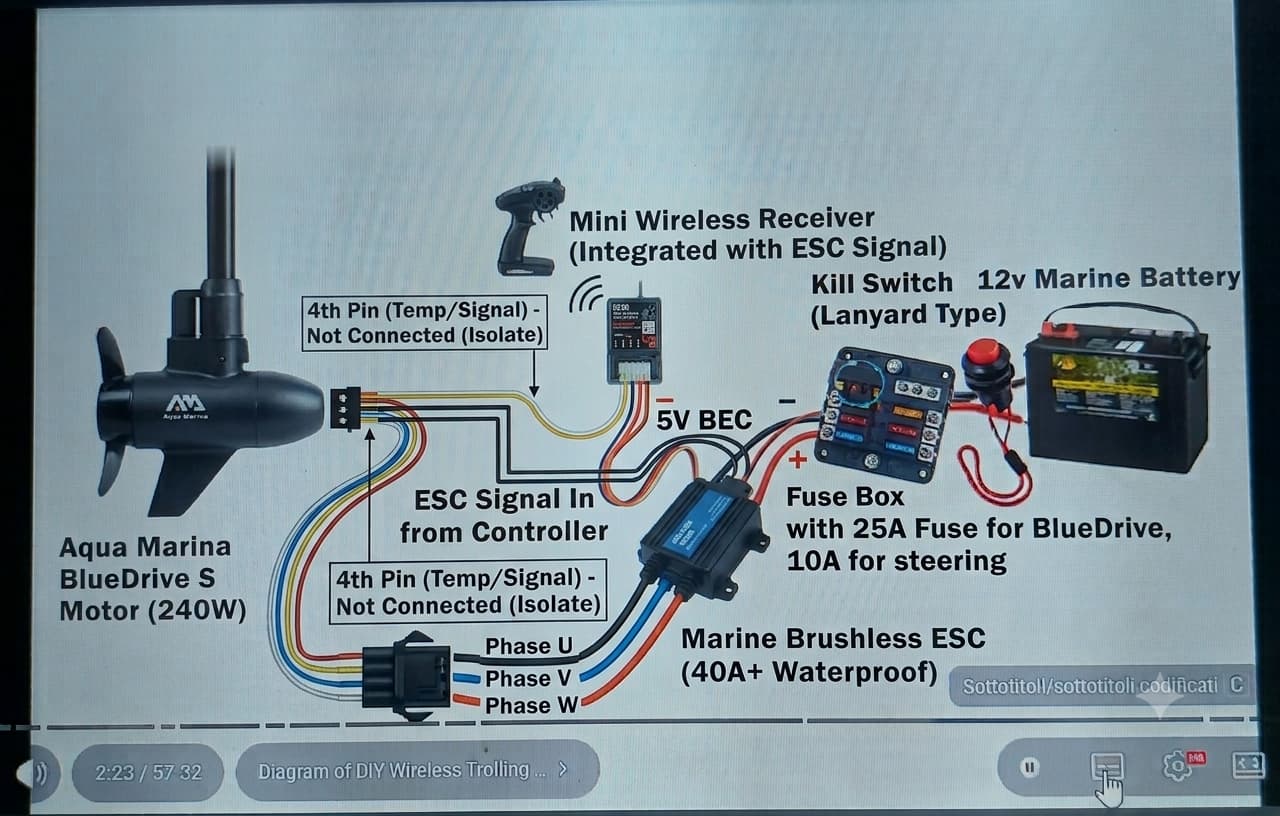

Hi everyone, I’m trying to build a battery for my sup fin motor, I put together the information I found can someone tell me if it’s correct?
The image looks a bit weird for some connections, almost AI generated

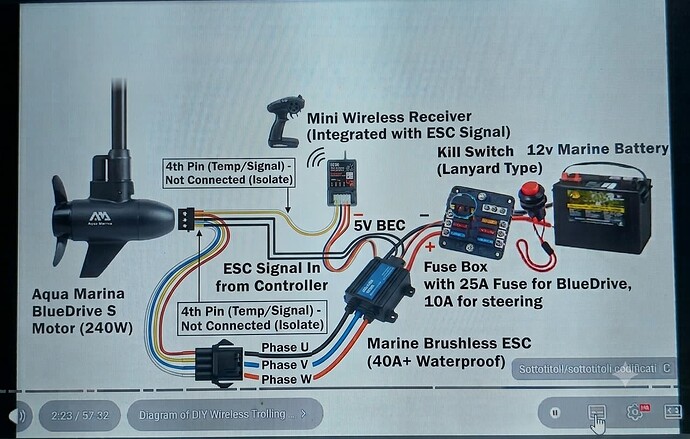

Some connections magically change from 3- to 4-pin, the black wires from motor to ESC don’t make sense to me,…
Best would be if you draw it on a piece if paper on how you understood it and with the exact components you will use
Are you just replacing the battery? The diagram you have seems to show the entire system. It generally looks correct with the main components. The only odd thing to me is it has an extra 10amp fuse for steering and maybe some extra wires related to that. I can’t imagine that would be there on a sup motor. You can probably find a complete 12v battery to swap, or make your own if you prefer. The main requirements would be the correct voltage, current capacity needs to be large enough, and then capacity just needs to be large enough.
Hi, yes it startex from an original images and then modified with ai
Yes there are some original aquamarina battery but they are low in capacity I wanted to build one with more autonomy
