Hi all,

I’ve been using an Escape32 Esc (Sequre WP14200) and I’m currently trying to have it running as I’d like. I wanted to create a thread where we could share our settings. I’m still fine tuning but his worked for me, though I still need to figure out some slight cogging under hard acceleration. I’ll update once I’m happy with everything, but at least this is a base config. Running Firmware revision 17 (patch 1)

My setup:

  • I’m 100kg 1m90 (220lbs 6’2)
  • F-one Phantom 1480 / Gong Hipe 5.3 (110L)
  • Flipsky 65161 / FR prop / 13S10P / Sequre WP14200

Current settings:

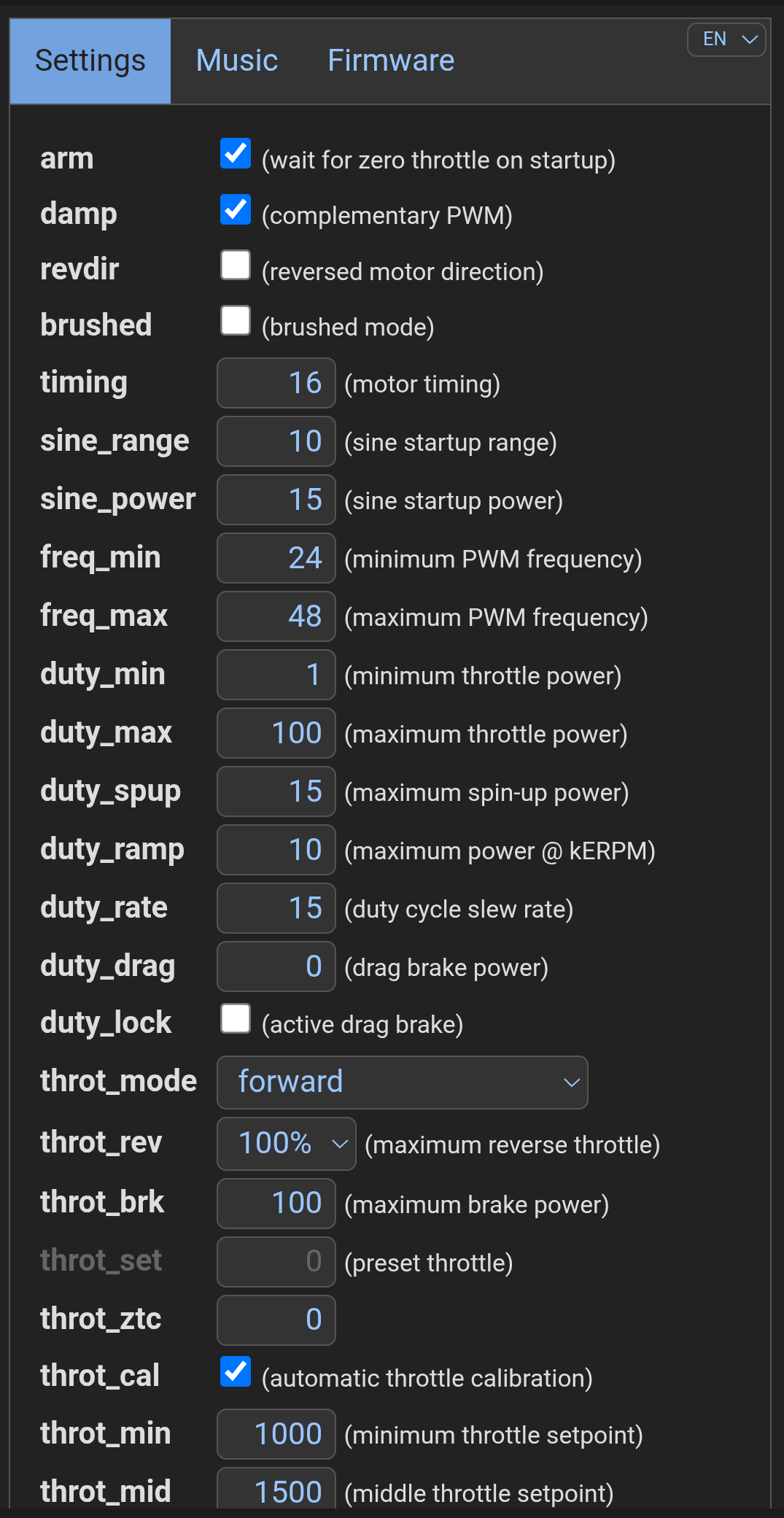

Config Ok-1
Config Ok-11075×2081 215 KB

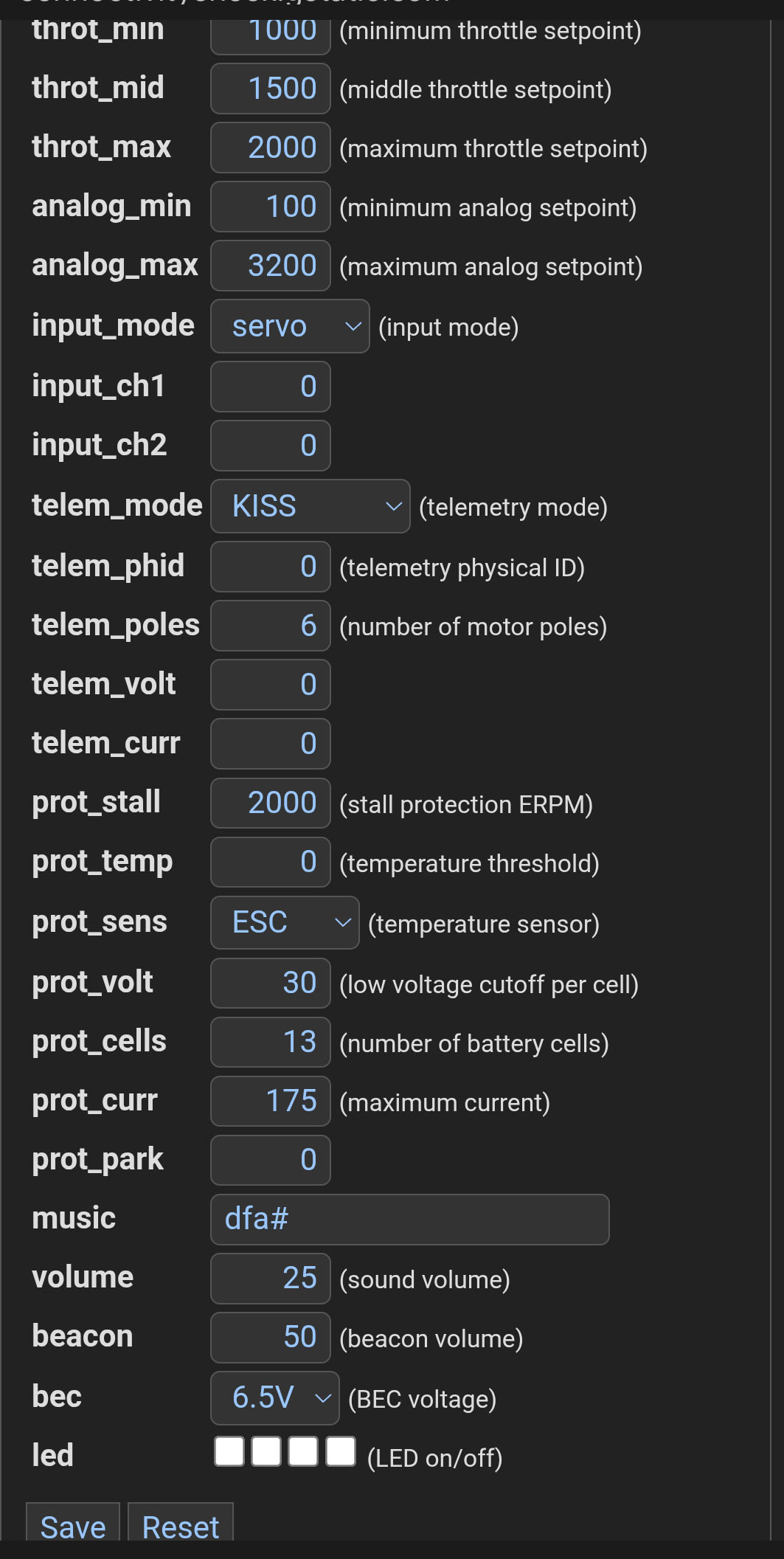

Config Ok-2
Config Ok-21063×2113 211 KB

Feel free to share yours !

1 Like
2

These are now my current settings… Had to tweak things a bit. I’m still getting some BLDC noise I didn’t have with the FOC esc…

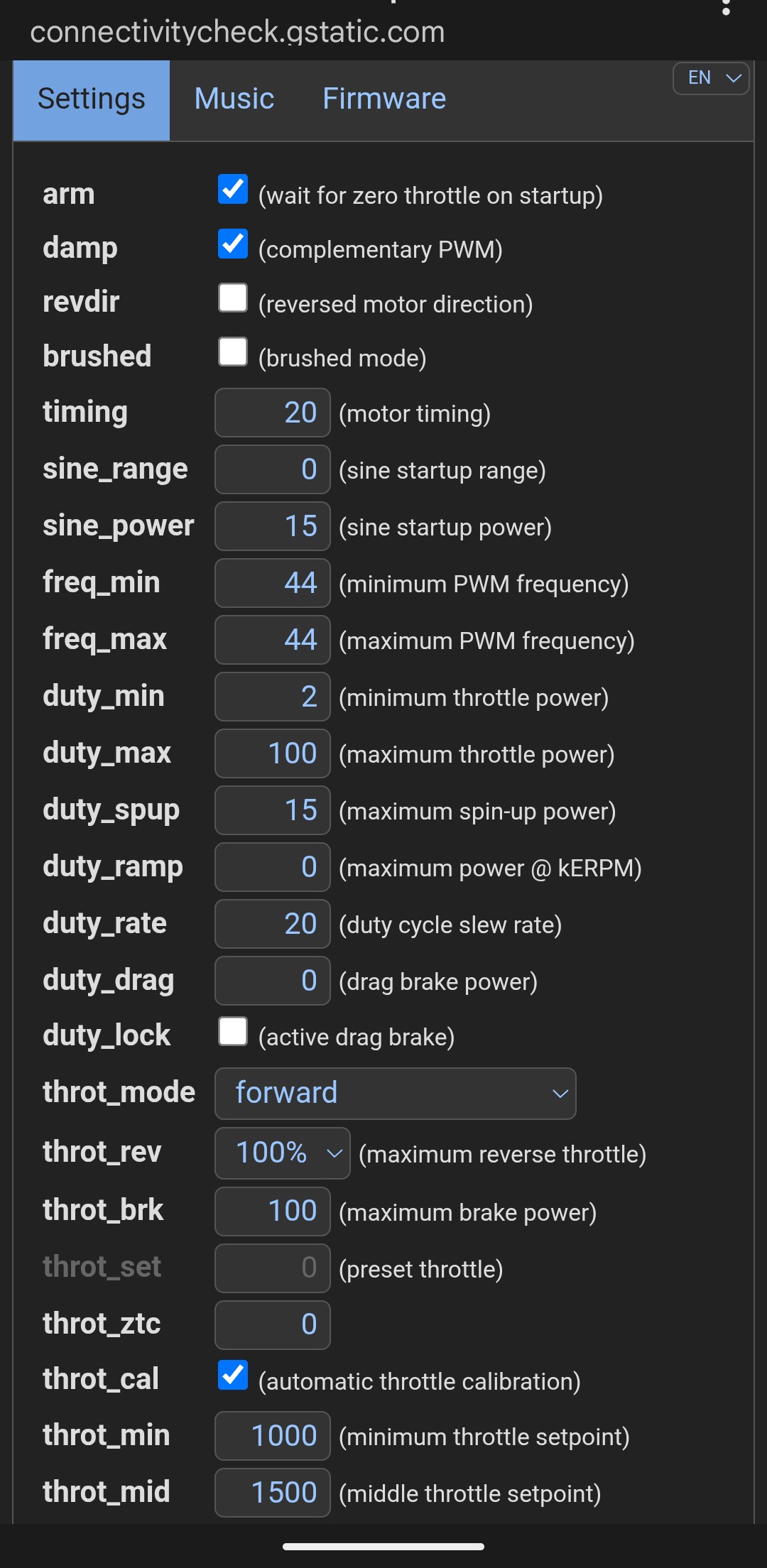

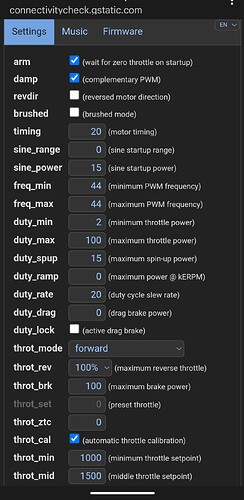

Screenshot_20260831-230727~2
Screenshot_20260831-230727~21080×2208 263 KB

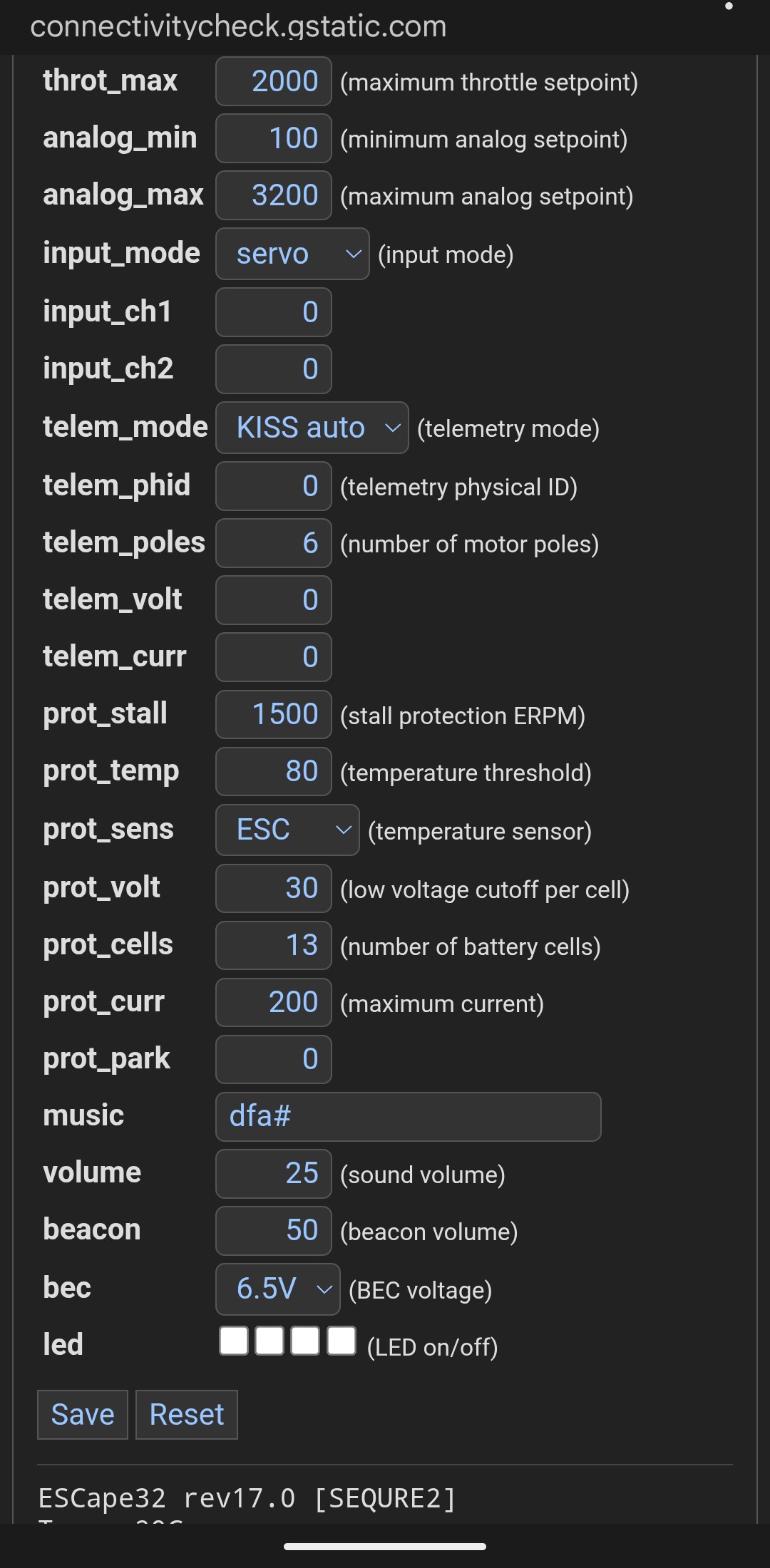

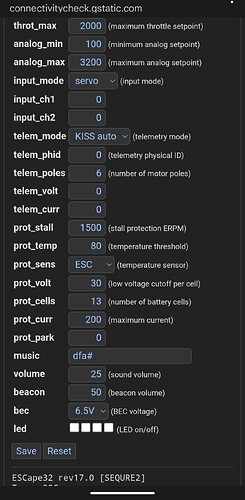

Screenshot_20260831-230743~2
Screenshot_20260831-230743~21080×2200 240 KB

I’m now running an ESP32 to capture telemetry and stream it to my phone.

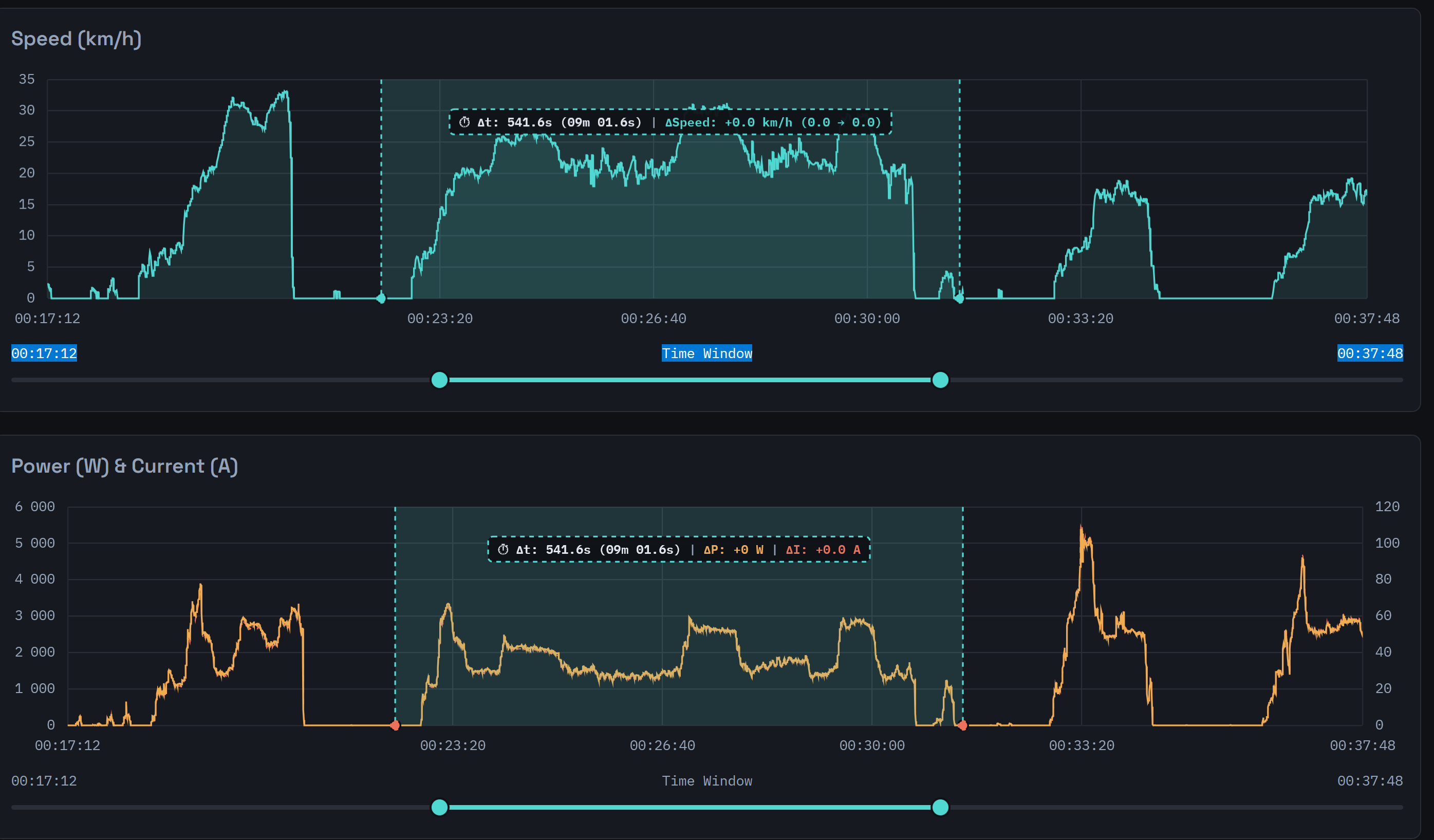

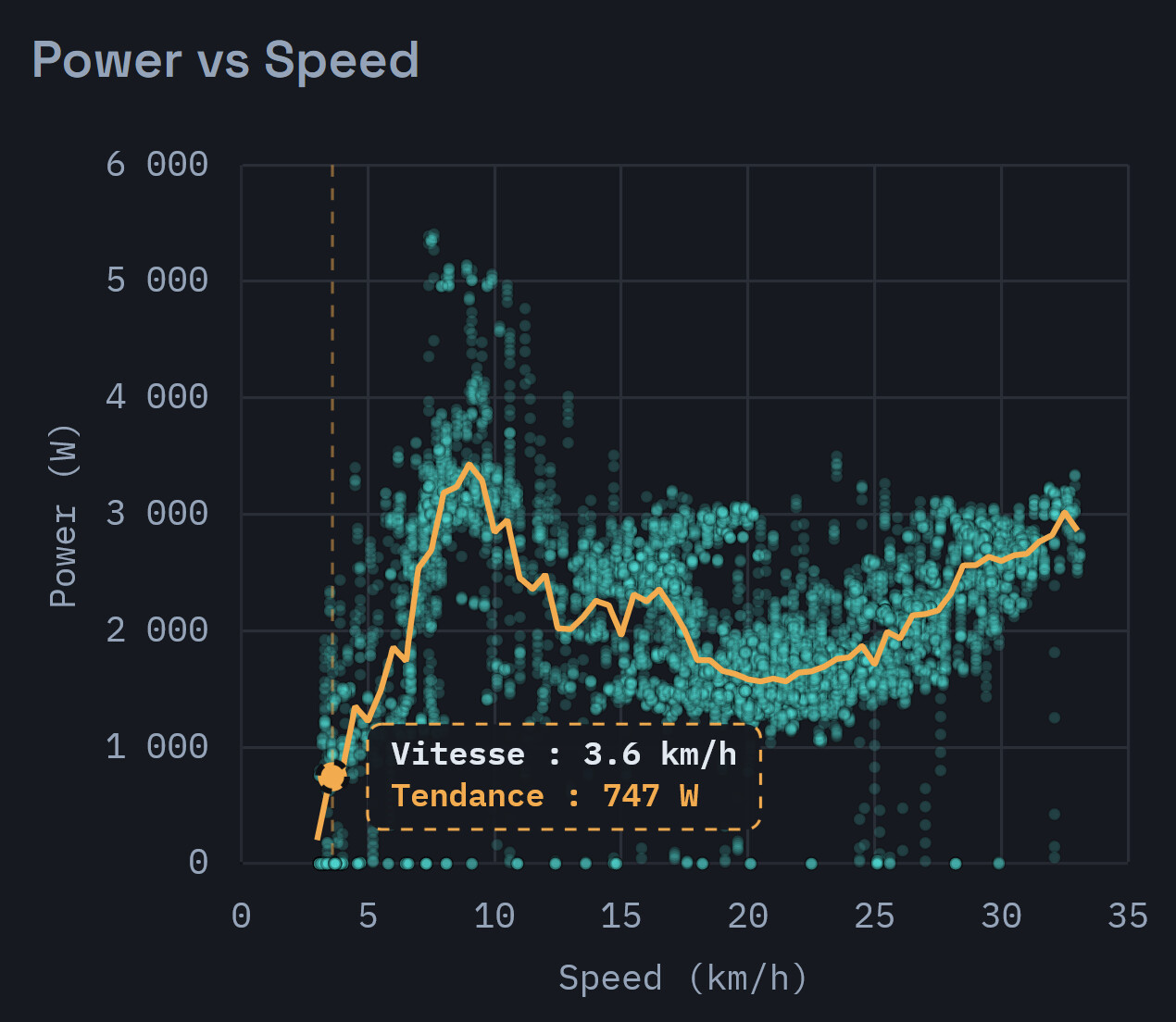

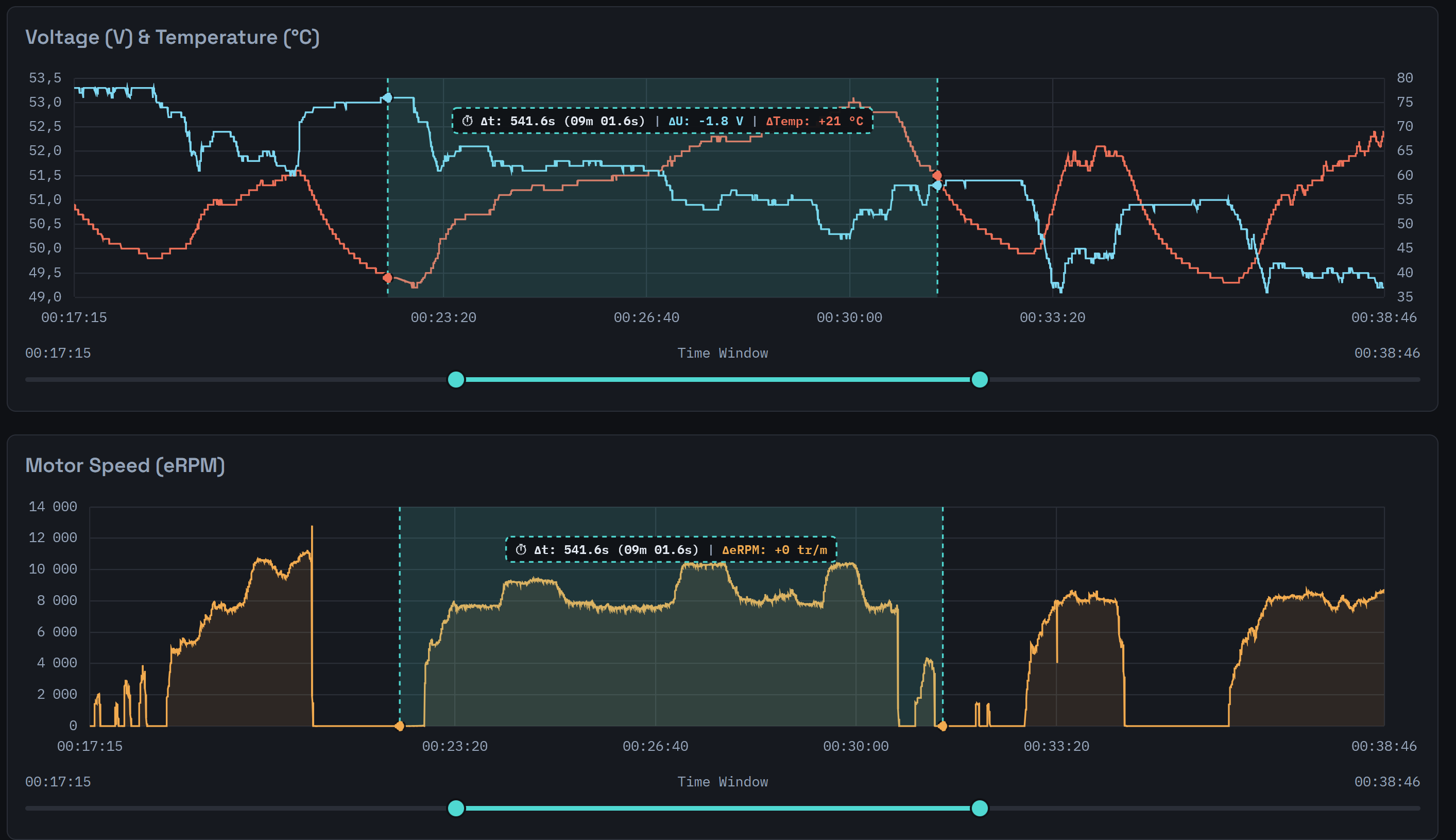

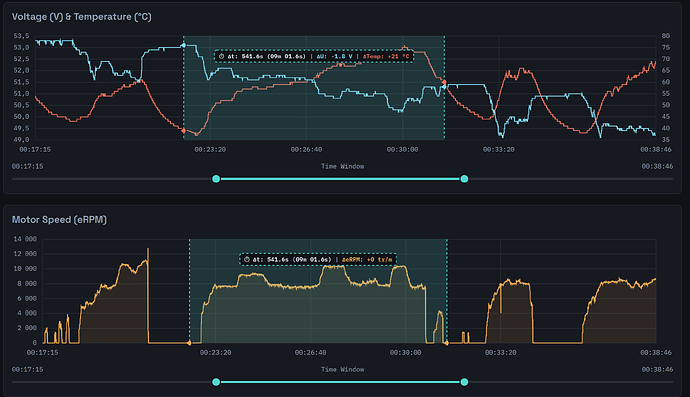

I’ve made a small dashboard to analyze the session afterwards. it is even logging my gps tracks…
AI allows for some really fun stuff nowadays !

image2791×1635 340 KB

image2827×1630 305 KB

image1270×1104 209 KB
