Does anybody have a cad file or drawings of the wing attachment part for Gong V3 fuselage?
Trying to make a DIY wing, planning on going with GONG mast and fuselage, but I am saving up to buy. Therefor it would be really nice to be able to print a fuselage to use as a mandrel.
I wanted to measure all the fuselage profiles I have from Gong (v1, v2, and v3) to create 3D-printed molds and build some carbon fuselages. I checked whether the geometry, dimensions, and curves of the profiles followed any standard measurements, but since none of the dimensions seemed logical, I decided to scan them instead.

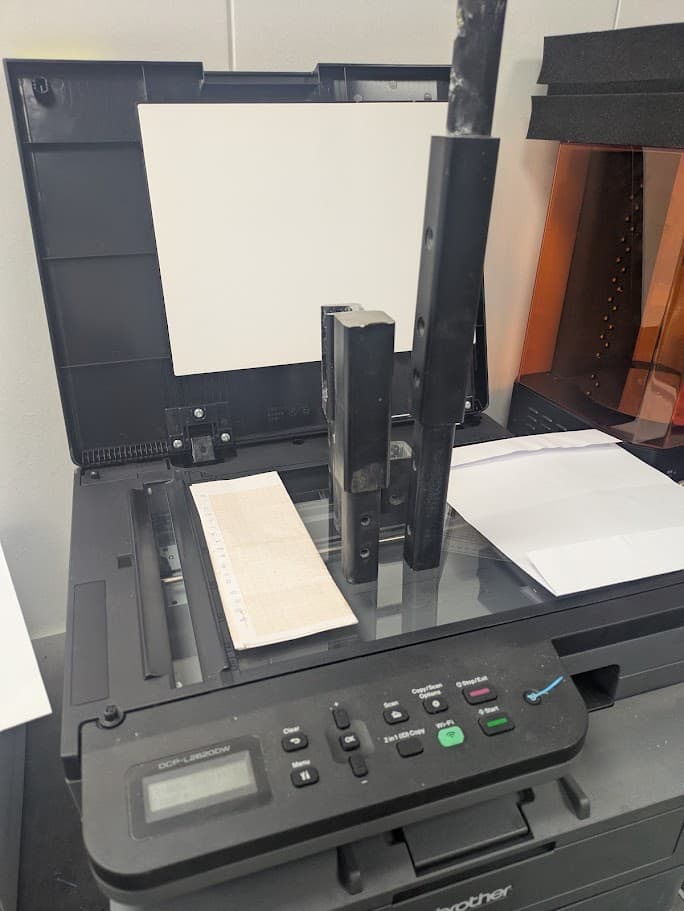

The final results are here. These are approximate shapes obtained by scanning the profiles with a home scanner.

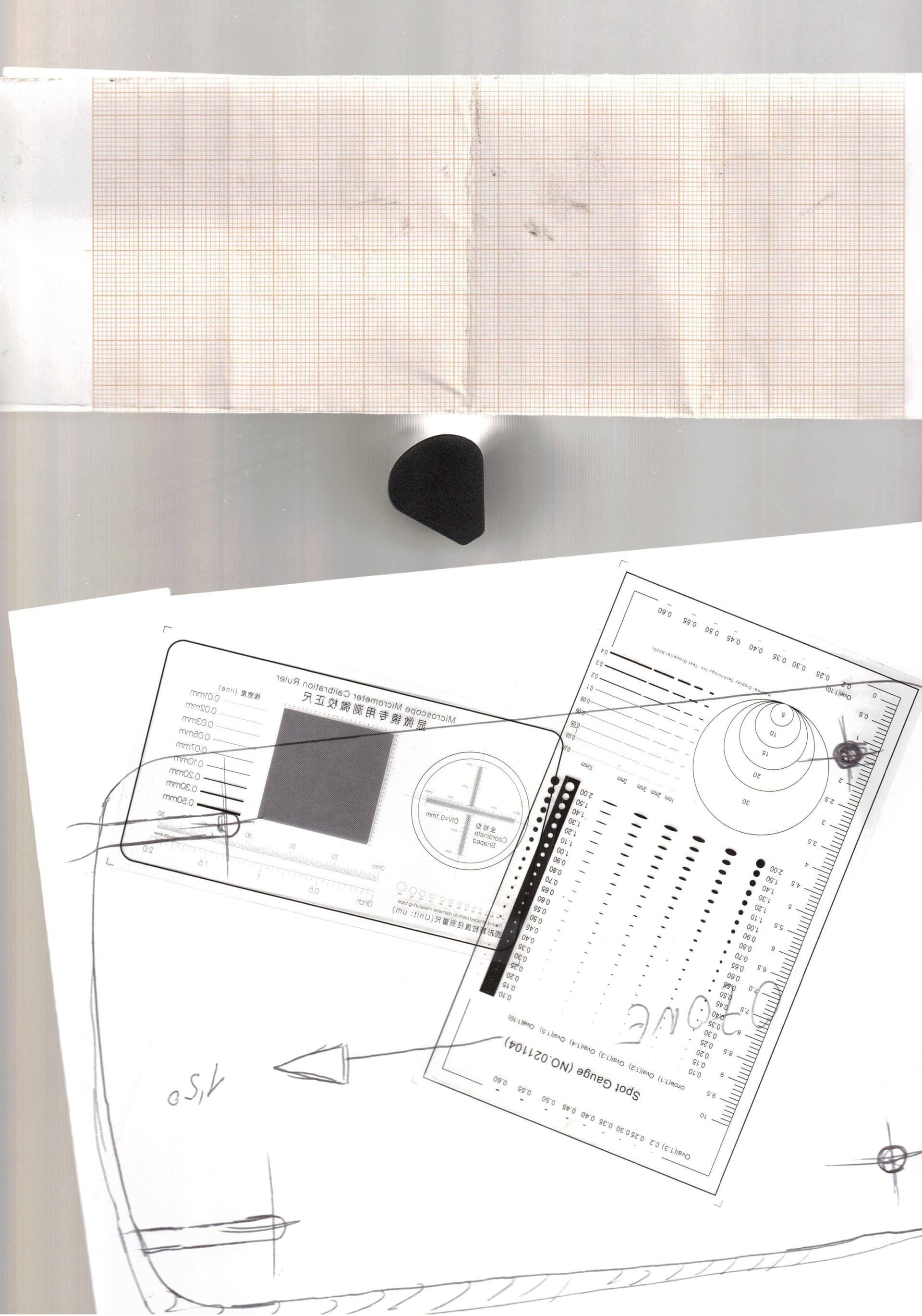

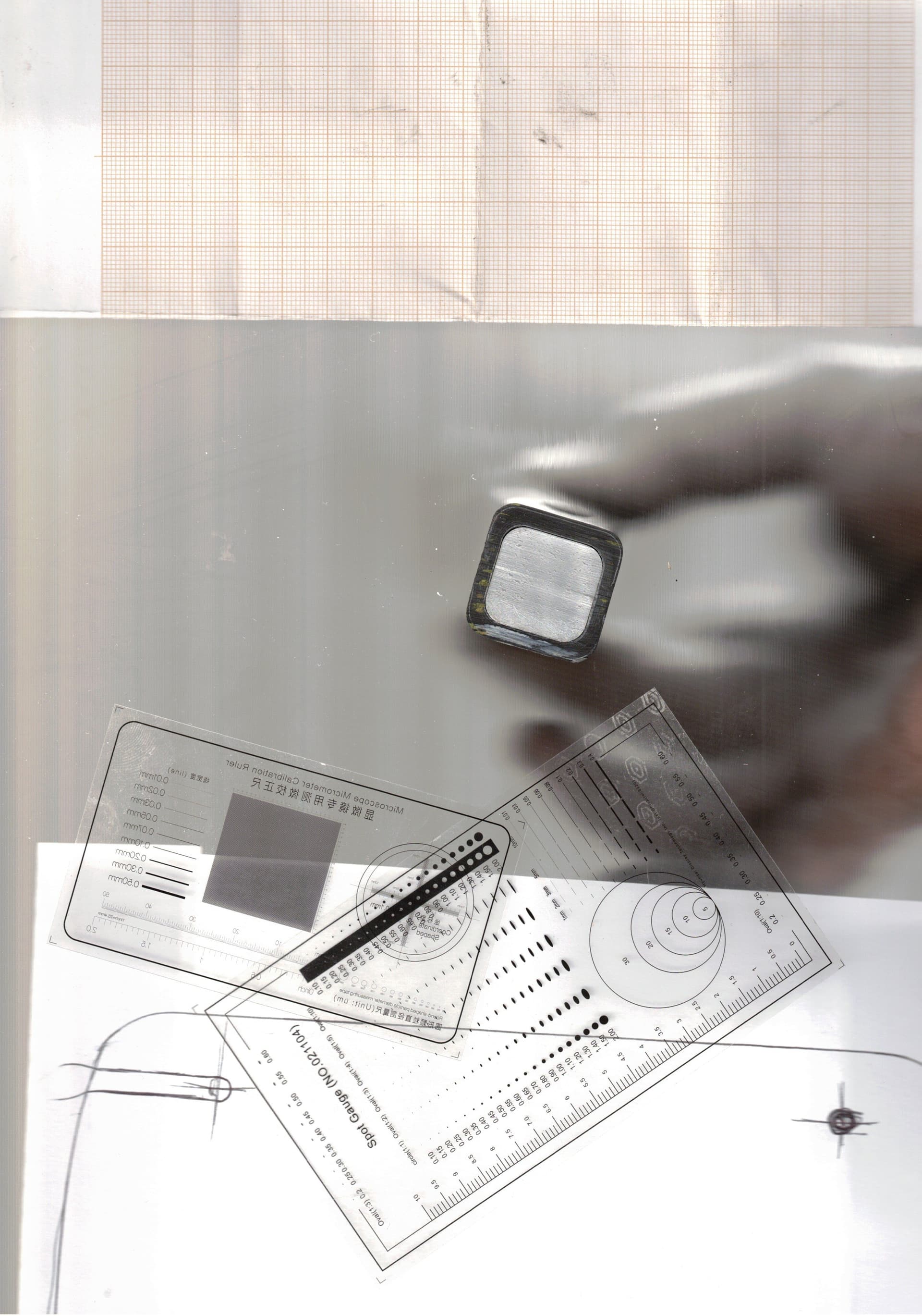

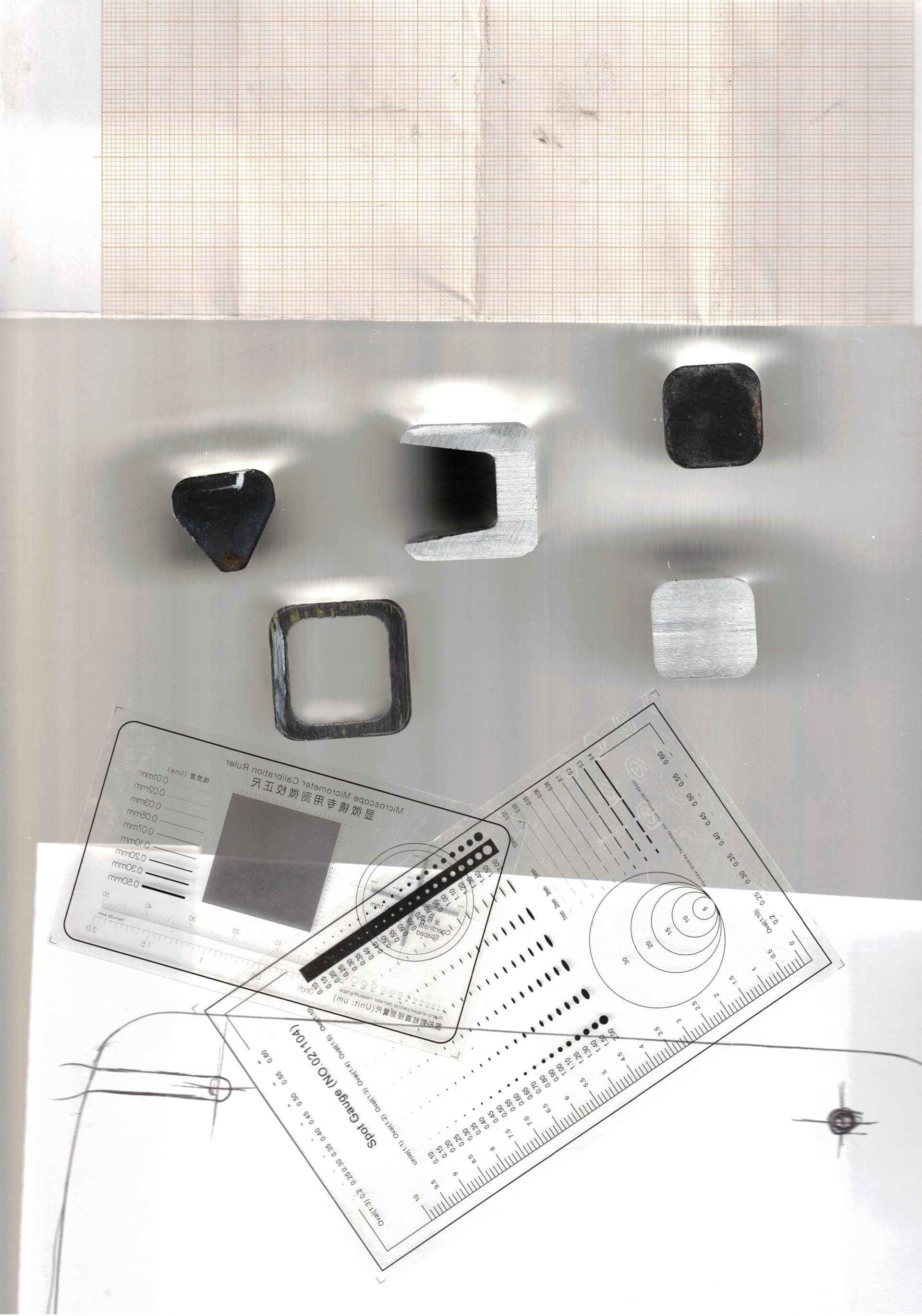

and here the scans
Hi! thank you very much! unfortunately the link is not working.
Here is link to pretty accurate (IMHO) step model of Gong V3 fuselage:
https://1drv.ms/u/c/5fb9711c50af6a72/IQBmIskhgANwS6PwAhHDT1VnAS4Yg4FgkWSSQoaTCJLPoIU?e=tuQhCY

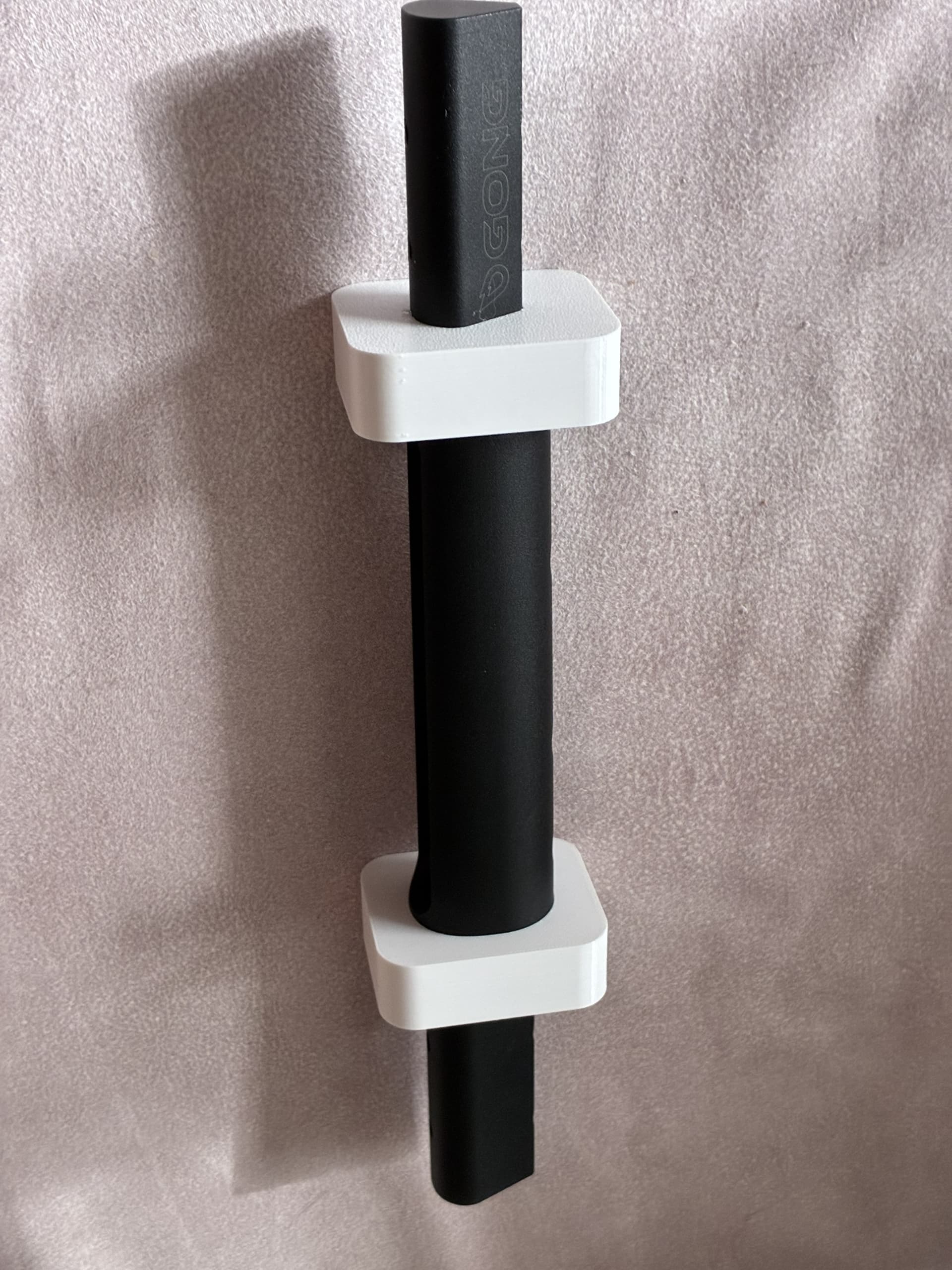

It was constructed from 3D scanned data. Tested with 3D printed transitions from thin to thick part of the body.
