Standard box from RD components sanded flat. Will try without water cooling first (less parts that can break). but there is room to add it in later if needed.
1 Like
Well maybeā¦ 2-3ā mast, 6-12" into motor tube, through board 3-6", across into ESC box 1-3ā. is way more that 1m, but you are running small current your good, most ppl arnt they are tinkering running 100-130+A and melting down with 10awg.
Yes if you have things really tuned and short wires, but not sure why anyone would skimp out and do 10 or 11awg when its like $5 more to do 8awg and have things run cool and safeā¦
This might be a month too late butā¦ why not fuse? If there is no over current protection in your system, you should throw one in there before you frag a battery and then you are in for a good fireā¦
The pulse rating of the ESC and the continuous current are different things. ESC vendors might quote pulse, but continuous will be way less. My esc will pulse 800A for <100us, but can only do 180A continuous. If you have a fuse for 2kW from 12S it will be ~40A, add +50%, so you get 60~70A. Iām fusing at 70A, but will run up to 100A as I unlock more power with development.
A fresh topped up set of 12S cells can be lethal because of pulse capability. To protect the fuse and batteries you need to make sure there is adequate capacitor banking on the esc side of the fuse. Current will ārippleā from these banks, as it should, so that your battery current is nice and stable, and your fuse doesnāt die prematurely. This is much healthier for your cells, and can explain why they arenāt lasting as long as youād like. Current ripple is bad. Big cap banks make a bit of a spark when you plug in, but they are lesser of two evils. You need big big caps and many, because each has a piddly current ripple - you want about 20A ripple capability in your bank, actual capacitance value matters far less than ripple rating.
When a fault happens, consider a hard short circuit on your esc output, will cause a massive pulse that wonāt stop. It becomes the āsteady stateā that drains the current smoothing banks, then they will replenish heavily from the battery and the fuse will blow. Sizing fuse to be small enough, so that the fuse blows before your esc catches fire is the trick. Preserving the esc, requires finding sweet spot between enough ripple capacity and so much energy in them that their discharge damages esc before fuse blows. If you donāt save it, at the very least youāll stop a fire.
When wire burns itāll desolder itself, melts insulation or just burn until gone and the fets would likely remain intact. Also, water isnāt that conductive, itās more a nuisance. IMO your esc is driving at low frequency, no current limit, heavy demand looks like a short circuit essentially, tyour esc pwm keeps rising, he motor inductance saturates quickly, current shoots through, you get a busted low side from over current, then soon after a busted high side, crowbar because these fets always fail short circuit, heating in the pcb and packages, fire, magic smoke. This happened to me three times until I figured it out.
12AWG is easy to work with. 8AWG is a heavy bitch that is hard to terminate. 10AWG is a nice balance. None of them will give you a heating problem until you have a hard short circuit somewhere else.
I like to throw in my two cents here. I had an ESC once blow up underneath my feet. I built an e-longboard and the gearing wasnĀ“t perfect yet. The motor tried to spin, but did not have enough torque. That caused the ESC to pull more and more current. It was rated for 120A, but who knows how much it pulled at the end. I was on low throttle, but suddenly there were sparks, fire and lightning. It was like fireworks, right underneath my feet. The ESC drew so much current that it burned up. The battery cables unsoldered and probably also shorted for a small moment. Luckily the LiPo did not get damaged. I was fine, but it was very very scarry!
What did I learn?
- Separate your ESC from your LiPo. Both can explode and its better if only one does.
- Use a 100A fuse for a 120A ESC. Costs 10ā¬, but saves you a lot of money if it trips.
I ordered 8Awg silicone wires and XT90 plugs. Everyone happy with that?
Hey MaxMaker, be sure your silicone wires are not the cheap red wiring from eBay or Amazon that if you read the print it is CCA (Copper Coated Aluminum). I made that mistake and itās not built for high continuous current. I did a lot of research on it only to find out it handles 20% less current and the silicone casing slices and breaks easily.
We also used XT90 Anti-Spark and XT90 plugs for everything on our first prototype they did get warm, and two melted. They are not really designed for high constant current either, and 8awg wires do not fit into them causing you to trim the wires and creating bottleneck/hot connections.
We have gone with all 6mm connectors that handle 150-200A continuous so our electrical system will be rock solid and safe. See these connectors and video:
7mm AntiSpark Bullets for 8awg wire: https://hobbyking.com/en_us/7mm-as150-anti-spark-self-insulating-gold-bullet-connector-2-pairs.html
6mm 150A Bullets for 8awg wire: https://hobbyking.com/en_us/xt150-battery-side-5-sets-bag.html
6mm 200A Bullets for 8awg wire: https://hobbyking.com/en_us/6mm-rcproplus-supra-x-gold-bullet-polarised-connectors-6-pairs.html
How To Solder Video: https://www.youtube.com/watch?v=hSuH0rjhVaA
3 Likes
I canāt help feeling that āmeltingā of anything is a symptom, not a cause. So stop the root cause.
If your wires are melting because of a short circuit somewhere, the problem is not that the wires canāt handle the current. The current is the problem. Fix the short circuit risk, then use the shitty wire from Amazon, itās all good. Most current travels on the outside of the wire anyhow so CCA kinda makes sense.
Try to conformally coat. If you arenāt spraying your esc and battery contacts youāll eventually lose your hole board because of all the shit floating around any enclosure. I like the coatings that you can solder through. Iāve bought some LET āliquid electrical tapeā recently and plan to spray over the XT90ās and terminals in my system. The stuff peels off when you need it to.
Donāt breath any of it in - itāll give you cancer.
1 Like
Yes, I use conformal coating and its nasty smelling and says it will cause cancer I do this in the garage with the door openā¦ The wires can hold the high current, its the plastic parts of connectors that get hot, soft and deform that is the issue. With that being said, as our design improves our operating current gets better (less power required for the same thrust/speed).
Sorry, i must have misread.
Heating up connectors is impressive. Could you go to screw terminals? No plastic to melt.
These are great. you can mod in ones that donāt have the spikey haircut, regular flat smt.
Another point might be peak current, vs continuous. Because heating is current^2 * resistance, perhaps adding some big electrocap banks would be a good idea. Cutting off the current peaks will reduce the āsquaredā part of the problem. This saves your batteries wear, current being the main fatigue mechanism there.
The downsize is that anti-spark becomes necessary. Sparks and noise become frightening, so something like a vedder anti-spark is good, but they are probably too small for this applicationā¦ ?
Very interestingā¦ thanks Brentsinger
Youāre welcome. Iām watching your progress and like what you are doing.
You got me, I got my wires from Amazon : / I am going to my caravan dealer soon though and he has all cables on stock. Probably can get some from him. Also looking for those bigger conenctors. Another good idea is to fix every component and cable to the enclosure so they cannot ratle around and also if a connection fails, it does not flop all over the place and cause a short. I am going to make aluminium holding trays that separate my batteries for example.

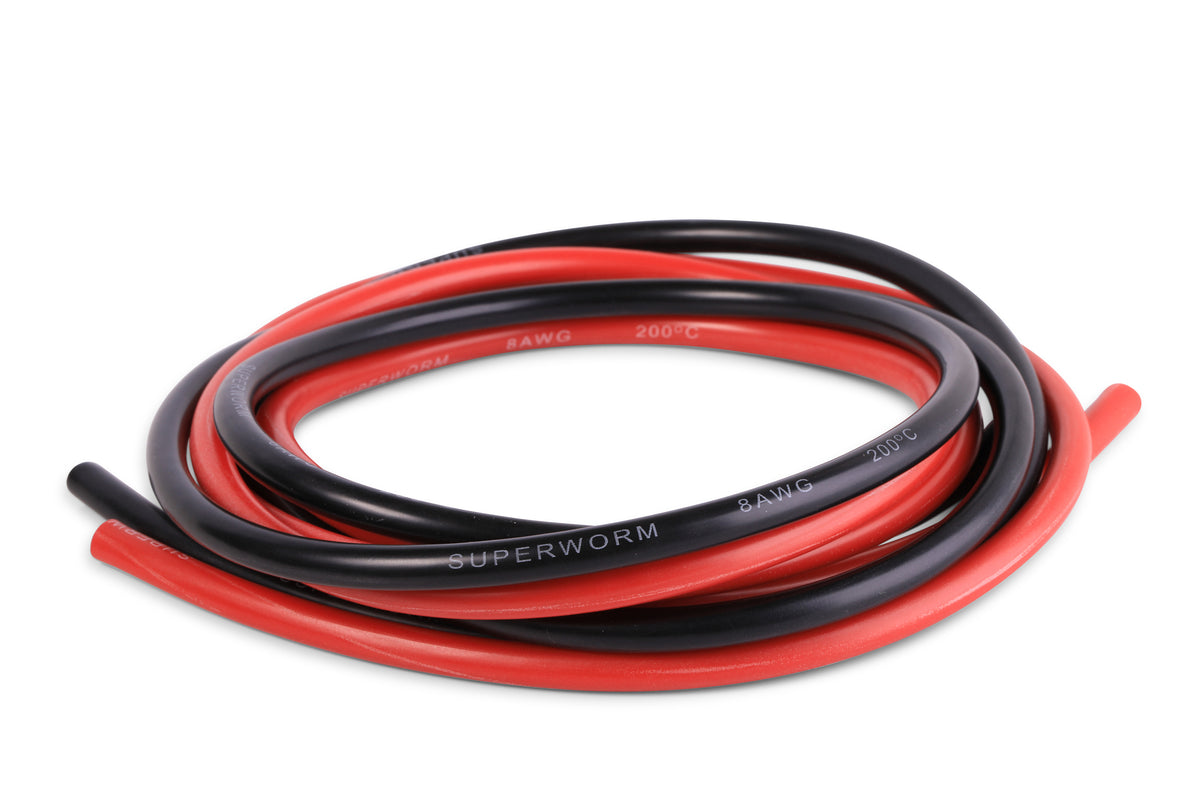

Be sure you get Tinned coated marine grade so you never have to worry about wiring again. We bought this wire and its the nicest quality wire I have seen and I see why they call it SUPERWORMā¦ Wow!
Superworm has been the leader in high-performance racing wire.
1 Like
Cool
We have been and will be waiting on some parts until after Christmas from the looks of things, but we have a lot of parts, and three prototypes to start testing once the remaining things arrive, its going to be fun!
So i got exactly what you said. Feels like Silicone, so that is good, but the cables are all silver. Still nice and flexible. I ordered 4m of each colour and they gave me 4x 1m lenths facepalm Trying to return it right now.
O-manā¦ ya that sucks. So many of those companies sell it in 1m lengths so ridiculousā¦ Be sure to read the wording for SuperWorm alsoā¦ they say like 10ā of wire (itās 5ā each color)ā¦ I got the 50ā (25ā each color).
SuperWorm is Tin Coated copper all silver looking, that is what you wantā¦ But in longer lengths
Hmm. maybe I got the right thing then? It looks like silver. How can I find out? I also ordered XT150 connectors and an Anti Spark connector. The 1m lengths are not that bad since I can splice them.
If you have SuperWorm your all goodā¦ They only sell Tin Coated and silver coated copper high-performance wiringā¦
Amazon DOES sell the SUPERWORM stuff that VeFoil mentioned. Of course there is a lot of other stuff as well.
Yes, Amazon does, but its all short lengths like 1m or 5ft. It looks like you are buying 10ft of wire, but its two 5ā sections which are not long enough if you have battery box near the front of your board PB1
