Hi E-foilers,

I have been following topics on this forum for quite some time, with thought of building e-foil myself.
Just recently I started designing board → here is what I got so far:

IMG_20230124_000106
IMG_20230124_0001063533×1970 286 KB

IMG_20230124_000633
IMG_20230124_0006333533×1970 298 KB

So idea is to make most of the board from EPS, only hatch and part of bottom from plywood.
Also bottom part would get 4mm thick alu plate to which I would attach alu box on the inside.
Alu box would house ESC and receiver (external antenna), filled with transformer oil, for better heat dissipation. Hopefully alu box + bottom alu plate would provide enough cooling for ESC.
Bottom plywood + alu plate would also provide easy and secure mounting for foil.
Of course board would be fiber-glassed.

Board dimension: ~1600x700x120 mm

Possible setup so far:

  • Motor: one of the 65161 motors or maybe FR.
  • ESC: vesc clone 75200/75300
  • Battery: probably 12s8p 21700
  • Foil: probably Gong X-over or Curve
  • Battery case
  • Alu box
  • Latch: one possible option → latch
  • Remote
  • Prop: FR or Flite

More to follow…

1 Like
#2

Hello Dejan,

I am from Slovenia too and I am making my efoil too! Well I can suggest you to mybe think about Flipsky VX3 remote instead of the alixpress one. Price is the same!

#3

Where are you foiling in Slovenia?

#4

Lake Bled, lake Zbilje…

2 Likes
#5

Lake Bled is possible? I thought it is forbidden.?

#6

No, Its legal to ride there! This is recored on lake Bled DIY Electric Hydrofoil Test - YouTube

1 Like
#7

Found this VESC on Aliexpress → link
Looks pretty much the same as Flipsky, at least mosfets are of the same brand…
Anyone used it?

#8

No, but some more information here:

2 Likes
#9

Some progres on my end :slightly_smiling_face:

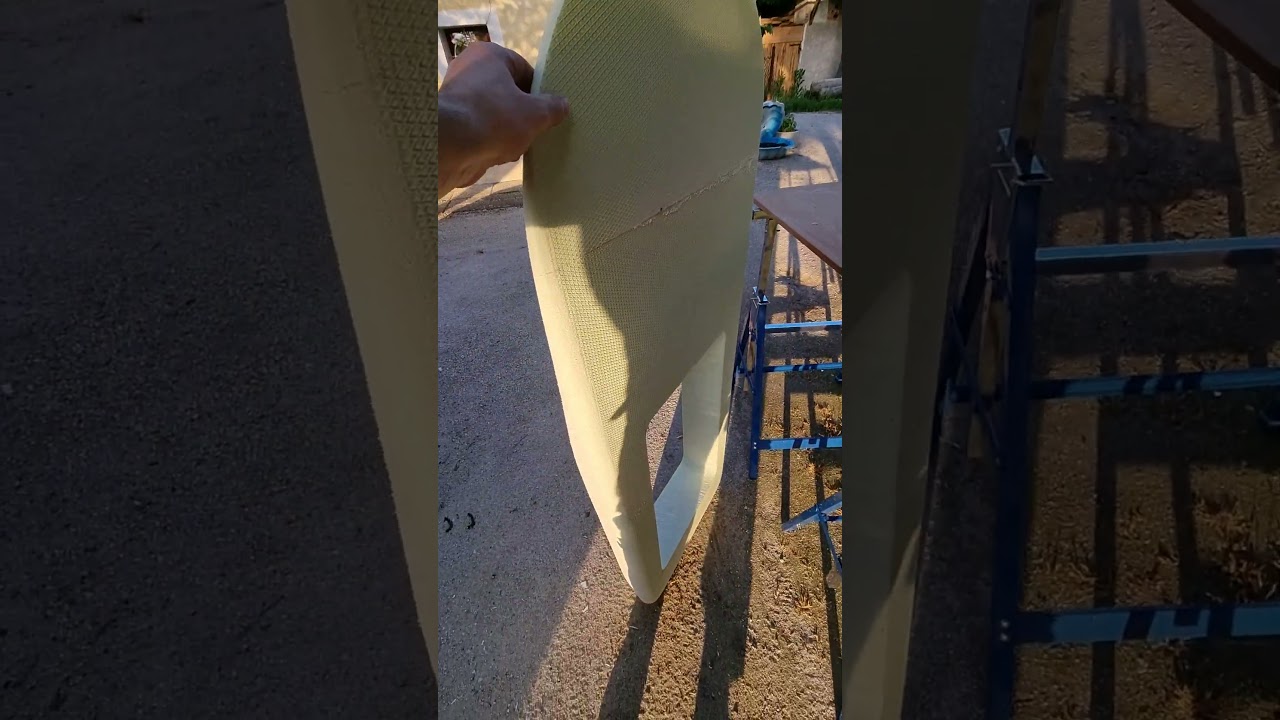

Started shaping the board. My first intention was to make a 3d model and use one of local CNC companies to mill it for me. But in the end I decided to shape it by myself using hot wire and “muscle strength” :laughing:.
