Hello to everyone on this forum! My name is Konstantin and I come from Lithuania Vilnius.
Ok first things first: Direct drive Efoil is HARD!
So I decided to share my story and hope it will help somebody avoid my mistakes or maybe inspire some new ideas.
I will be making separate posts about:
1) Board
2) Wing
3) Prop
4) ESC
5) Motor
N 1. The Board.
The board is made from EPS 200 blanks. 2000mm X 700mm X 150mm
Formed by hand using an angle grinder and other grinders I could get my hands on.
After countless ours of shaping it finally took this form:
I decided to split the battery compartment and the electronics compartment. The small electronics compartment is closer to the nose of the board for better remote signal. The battery compartment is closer to the back (to shift weight backwards) and has an aluminum bottom for passive cooling, with doubles as a mast fixing plate:
In shot that’s the story of my Efoil board!
N 2. The Wing.
In 2018 the price for a decent hydrofoil wing was unreasonable so I decided to go ahead and design and machine my own.
After several month of learning Fusion 360 and Autodesk CFD. I managed to come up with this wing model. The CFD simulations show 1:10 lift ratio @ about 20 kph speed with 5° AOA. Never got to properly test it thou(first thing to do in sommer 2020).
The wing was cut on a CNC from plywood, then sanded and polished by hand.
This was my first experience operating a CNC machine, so it is kind of rough cut…
Then the wing was reinforced with fiberglass and epoxy and sanded down to achieve a smooth finish. (about 5 cycles of epoxy and sanding)
After sanding the wing was painted black.
So that is the short story of my Efoil wing!
I’m starting to shape a board with XPS now. Learning what works, and what does not. What tool did you use to mill out the shallow recess where your big aluminium plate will sit. It looks like it came out nice. How many coats of glass, and what weight glass? I’m looking forward to seeing your motor solution.
Hi MAC, I would suggest using a hot wire to cut off the large pieces, then a polishing machine(same as an angle grinder but with low RPM) and finally a delta sanding tool. Something like this:
N 3. The Prop.
At the beginning of my build I knew nothing about prop matching so my first prop mas way too big:
Then the smaller props arrived and the testing went much better.
I will write more on that in my ESC and Motor sections.
For now the prop is still an unsolved issue. The best results so far were achieved with this small 2 blade prop from Aliexpress:
Does anyone else use it? what kind of results are you getting?
Hi Konstantin,
you did a great job finding the 2 blade propeller! The diameter looks alright with about 150cm. So far my best results I achieved as well with 150cm 2-blade propeller (3d printed). It looks like that the pitch could maybe to small. Are the blades feeling stiff?
Hi @superlefax the pitch is my greatest concern also. The blades are very thin and sharp. They do feel stiff but are somewhat brittle, you can easily make a small dent. On the other hand since the prop is injection molded I saw them on alibaba for as little as 20 cent on large MOQ’s.
N 4. The ESC
In 2018 when I started my build there were little options for a suitable ESC. VESC 4.12 could not handle the current other 130-ish ESC’s where exploding like fireworks even on geared setups. So naturally I went with this big red Chinese piece of shit.
Flier ESC is not designed to work with low kv motors!
Now there is a discussion about timing setting for Flier.
My extensive testing showed that all it does is makes the motor spin faster at the expense of efficiency. Ideally you should never set it above 1!
I recommend a simple experiment: spin the motor for 5min with timing set to 1 and make a temperature chart and then do the same with timing set to 30.
Recently I have switched to VESC 6+ trampa. And the only thing I can say:
GOD bless Benjamin Vedder!
That is the short story of my ESC experience.
So true. I am using the 6+ as well. It is even worki g with a motor current of 130A flawlessly.
What about your current prop ? In the last video you seems to use the solas 7.8 x 7. Is it good ?
Hi @Sliman_O currently I’m using a different motor and a 6 x 4 inch 2 blade plastic prop as described in my Prop post. I am searching for a higher pitch same dia prop thou. 7.8 inch is way too big. It was one of the reasons I could not start the motor under water. The important thing I learned is that you should never go above 160mm. Even geared setups struggle for torque at that diameter.
That’s good to know thanks
As many here, looking forward to your direct drive motor
I don’t have one of those sanders, but I will next time I am at the store. Thanks.
N 5. The Motor story.

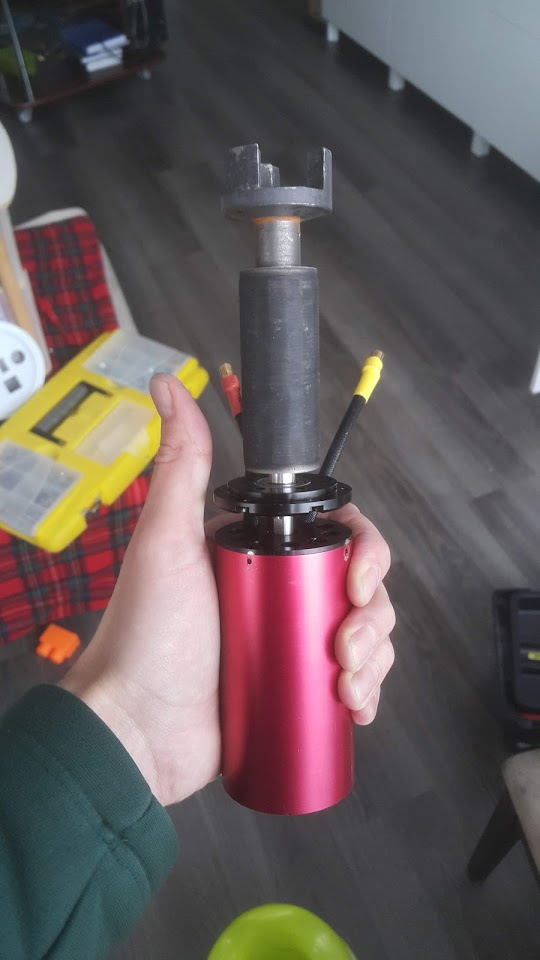

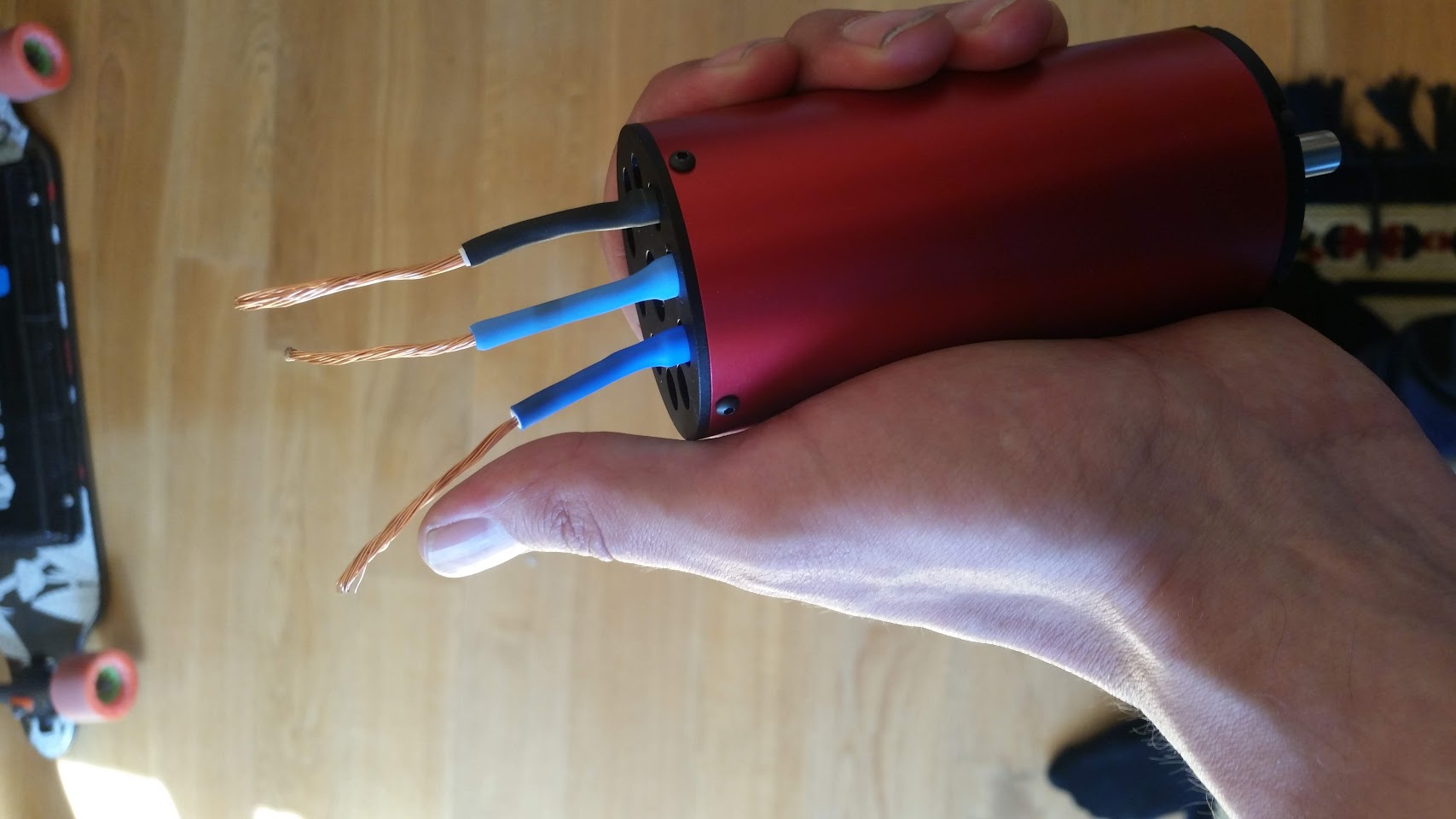

My first motor back in 2018 was this Horrible piece of shit:
MP 56115 from Dongguan Freerchobby Model Co., (do not recommend doing any business with them)
After a lot of trouble and desperation I managed to get it to spin in the closed loop mode under water.
A custom firmware for Flier ESC was needed.
As you can see in the video the motor is barely spinning on 50 volt 12 Amps.
So naturally feeding it more amps let me to burning 4 of such motors..

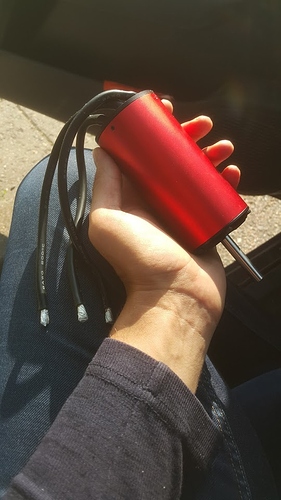

In 2019 I managed to find another Inrunner:
53112 8 Pole 24 slot
This was a much better motor in every way possible:
True 8 poles.
Larger rotor than MP 56115.
Well balanced.
Better slot fill.

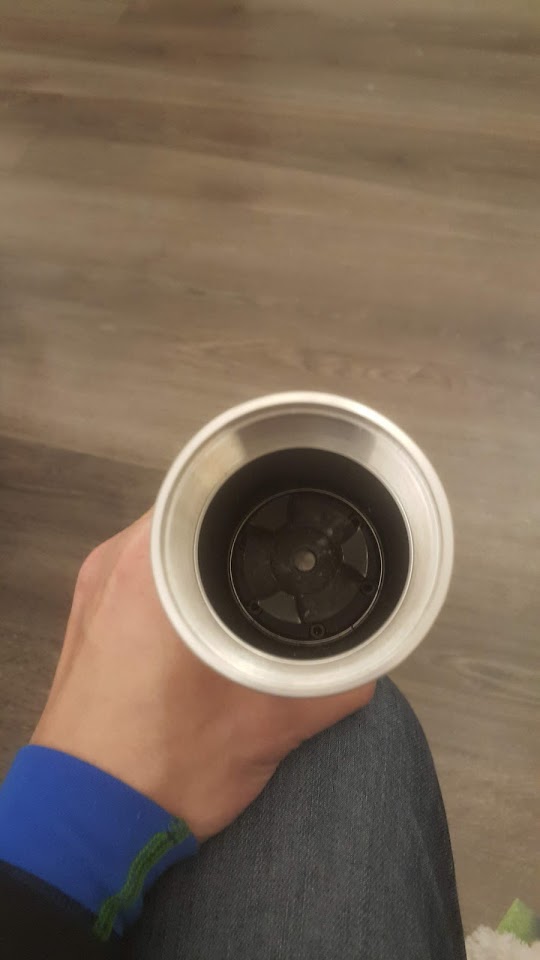

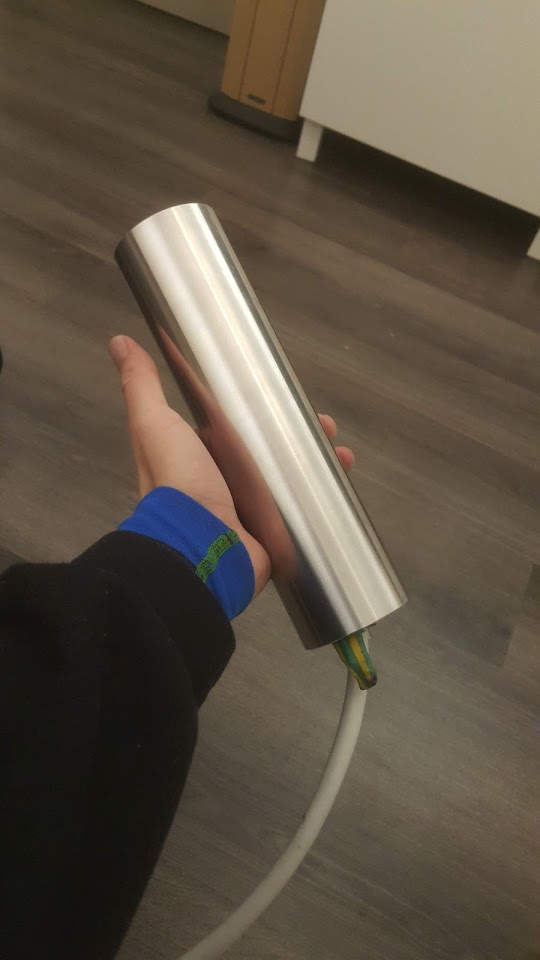

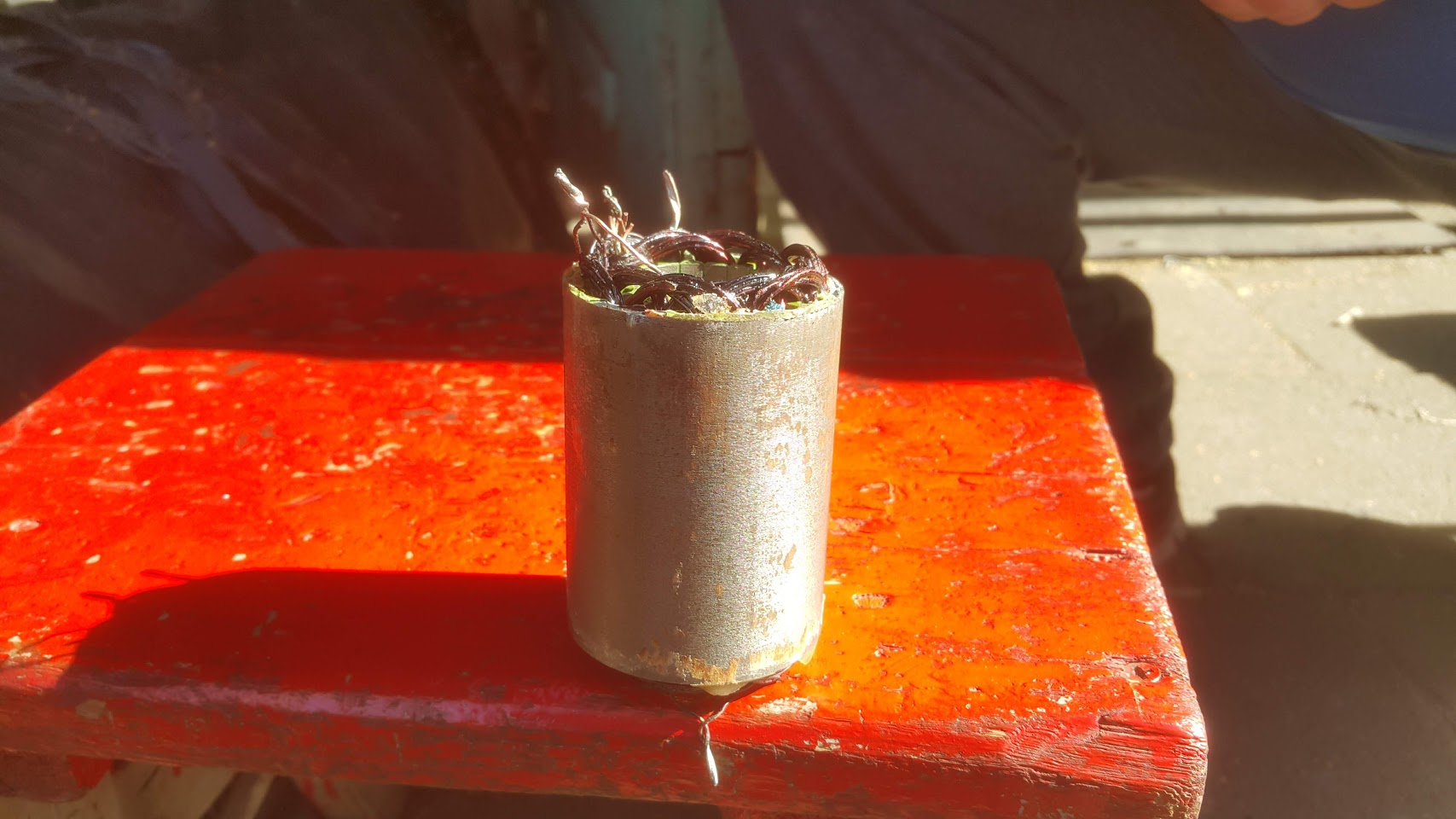

So I press fitted it into a custom made tube for better cooling:
And hurried to test it in the watter
The current was limited in this test to 12 amps by the power supply.
Being pretty happy with the results I decided to up the ante… 20S and throttle to 80%.
20 Kg of static thrust was a great result. Unfortunately after this test the motor was fried.
I was still hopeful so I got a couple more of those motors in hope that a smaller prop may fix the problem.
And it did … sort of…
The first test fully assembled:
And the first water test 12s and 6 x 4 plastic 2 blade prop :
As you can see everything went fine except the speed was not there
so no foilling on my first attempt. (one of the possible issues could have been the absence of a pin to fix the prop in place so there probably was a slip there).
On my second attempt. The small plastic prop got broken so I threw the large 7.5 x 5a Yamaha prop at the last moment. The Battery was reconfigured to 20S, so with no current control on Flier it is not hard to guess what happens…
And that was the end of 2019 Testing season for me.

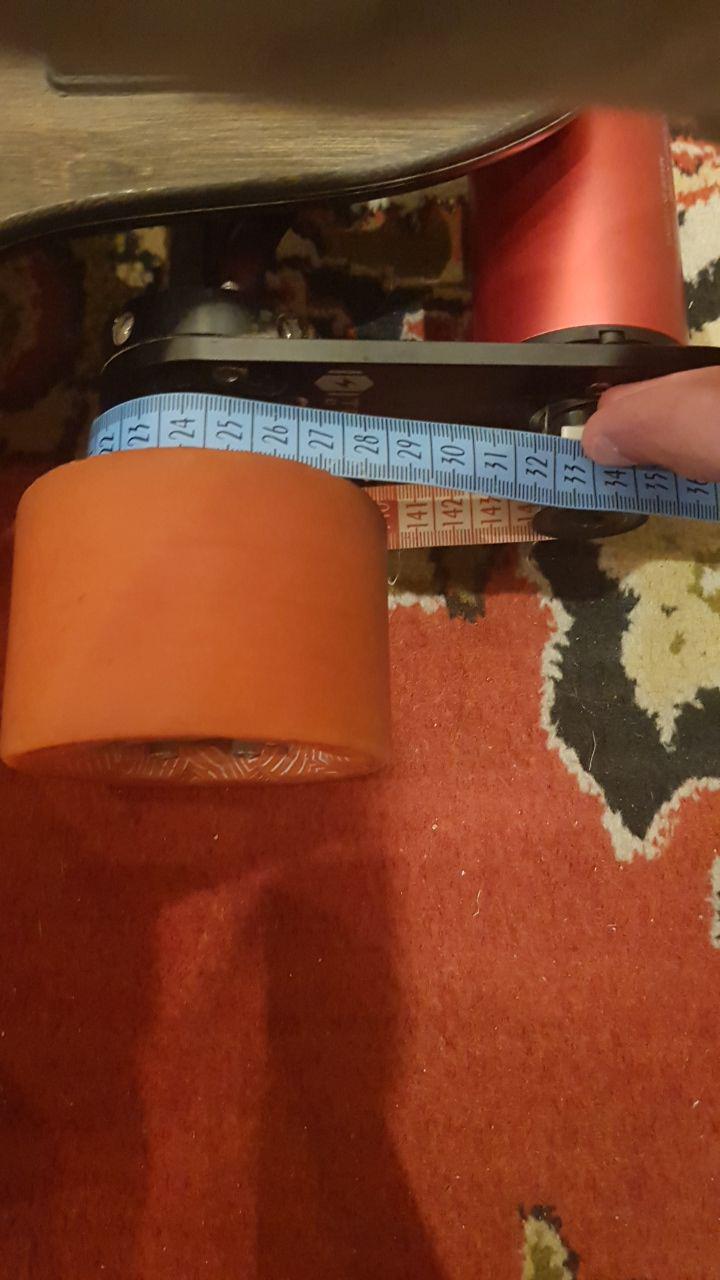

So I decided that not to torture the second 53112 motor I had an put it on my little brother’s eske8:
The 2020 PLAN!

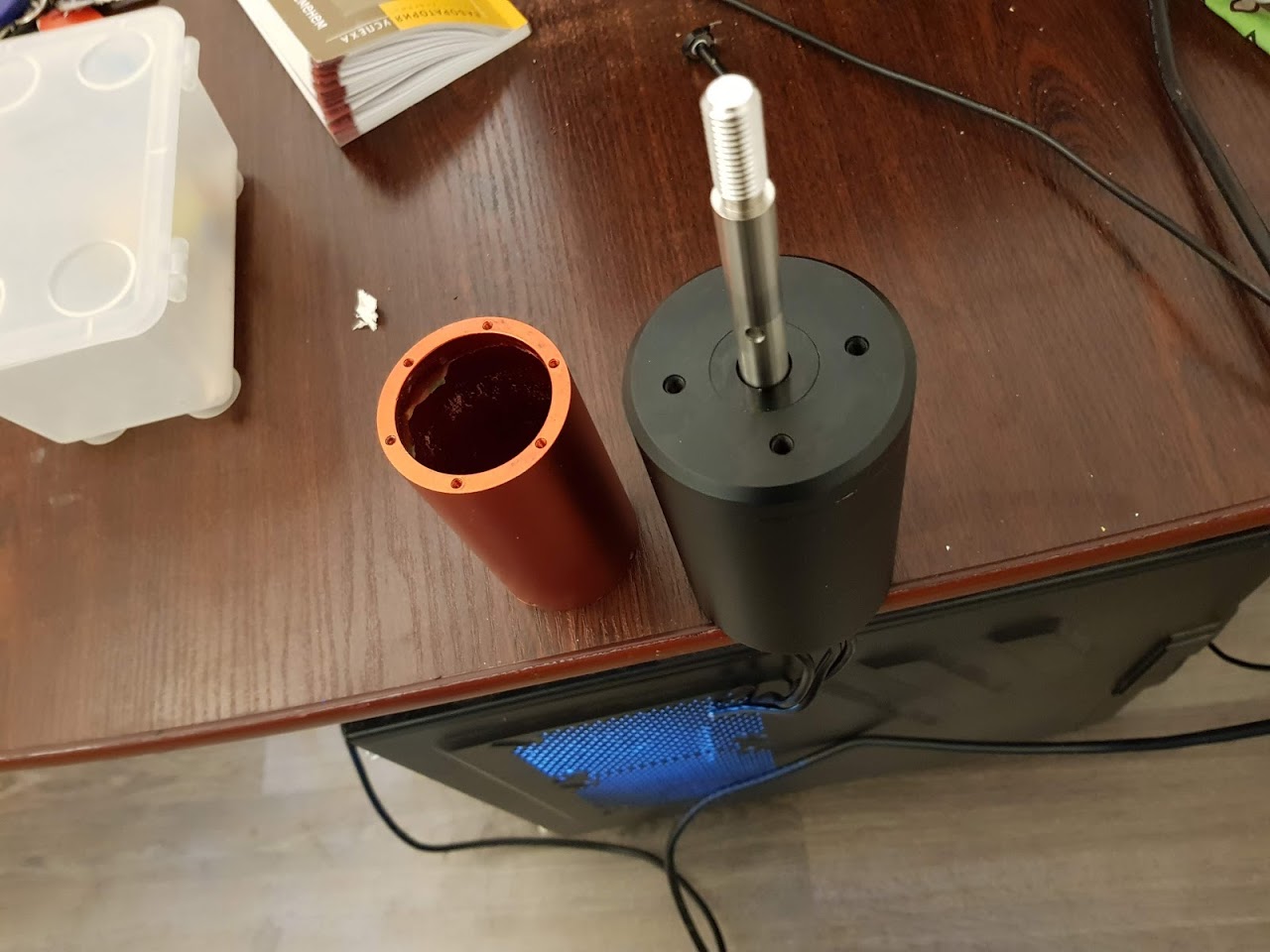

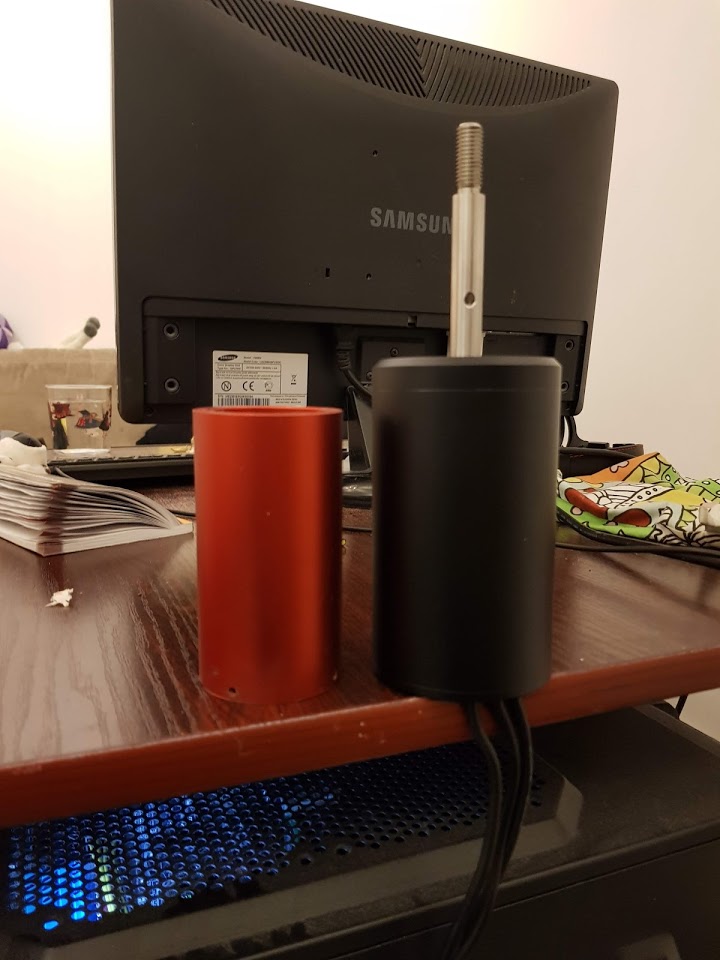

Here is my new 72mm designed from my experience Waterproof 12 slot 10 Pole inrunner motor.
I got myself a VESC 6+ Trampa. And a pair of new motors. The only thing missing is a low diameter high pitch prop.
I know this motor will be interesting to some of you so feel free to sugest a test I can do using a VESC6+ and a small indoor pool(really small) I have access to.
Can you link the source?
This one looks really nice.
Do all the tests
KV, Resistance, static thrust.
All in comparison with another motor would be nice. So same prop and then e.g. 53112 vs the big one.
Hi Giga,
The Side by side comparison is hard because 53112 is not waterproof and is mounted on Eske8.
The torque difference is so big I feel there is no point torturing that little thing
Interesting motor, looks like it would do the Job. Its different than any that I know of. Someone will figure it out.
Hi Konstantin,
Why don’t you want to give us more details about the source ?
Did you design the 72mm new motor all by yourself with the help of a chinese motor company ?
Hi @Thom, I designed it myself and I’m willing to share the motor with the community(if there will be interest). Just not the manufacturer.
