Good Idea for folding sharrow prop, could work. And congratulations for your CAD skills, as good as mine.
1 Like

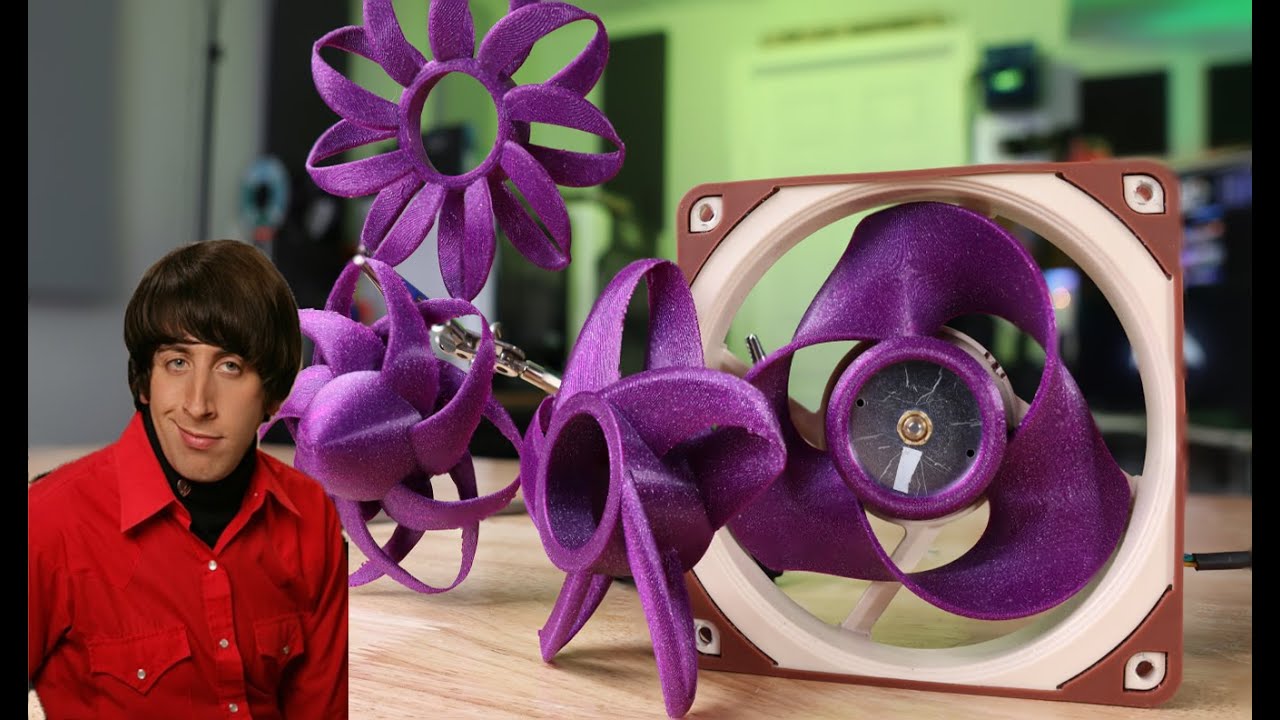

With data and with the 3d printed sharrow from thingiverse…
Like the data with actual measured values!
It was fairly obvious though that the propellers would not excel already by looking at them
1 Like
That’s pretty, the curve on the blade is very nicely blended! What software did you use to make it? Is it just a swept profile with rails?
I was just modeling my own attempt, but using offset blade profiles with a loft in Autodesk Inventor doesn’t look the best.
3 Likes
I use Fusion360. Made five individual profiles: Inner two, outer two and the vertical connection. Then loft with guide splines.
2 Likes
This is ready for a test but I don’t think I’ll get out this weekend because of the weather.
All sanded and the inconsistencies in the aerofoil have been filled and smoothed to give it half a chance
1 Like
Will those sophisticated propellers pass the first minutes of water testing ? We 're back to Oct 15, 2017 where this forum was created, post processing (carbon fibre layup , …)
However, something has changed: we have the 5-axis 3D printing for printing loops and curves in the strongest direction :
Who will (will there) be the first company to offer one that is molded ?
1 Like
One that can prove the efficiency of the prop justifies the cost. Hell we’ll probably anti-gravity boards before they truly prove the efficiency of the sharrow prop is worth the investment.
You’re probably right in that. Looking at the loop profiles i doubt the benefit.
Large wetted surface, areas with drag but not lift and the main advantage as i understand it is the decrease of the tip vortex. How much efficiency can be gained back by that?
For out purpose its pretty easy to just use sintered props. Polyamid works just fine. That’s my plan. Also ABS FDM is quite good. Sanded + smoothed + painted of cause.
My normal props made that way hold up very good:
7 Likes
That’s a beautifully finished prop! Is it FDM
That looks like a foil-assist setup…
Yes, wrote that
No, 3kW eFoil
Yeeeees that is what I mean, can’t wait for the first results.
Do you got a file for free CAD that I can adapt for my motor? Thanks for sharing.
I did a better caeses based prop variant with a good loop and profiles which follow the normal propeller path. I think i got the axes of both lower and upper blade skewing right…
It doesn’t add much useless area in the loop so I’ll try printing this one.
1 Like
Looks like the foil is upside down on one side?
No, all profiles are as they should be. but they are all on individual planes, so it looks confusing when viewed only in 2D.
3 Likes
Nice! Sounds like I just need to adjust the angles of my sketches a bit to get a better curve.
Did you have a specific profile that you were using for the blade? Or was it just a guess? I just drew a cord and two splines with a single control vertex each and made sure one edge was a little longer than the other.
