No way to start a small board like that. Shoulders above the boardnose isnt far enough.
My Sternum is above the nose of my 99cm.
On this board, i guess its the bellybutton
This is exactly what i mean, on my 115cm shortboard the upper body is mostly hanging in the air during starts, just a small throttle change gets me a nosedive. On 88cm i’d be having to sit on the front edge or something like this😃
Starting with 99cm
3 Likes
Still you lift quite ok. I really should lose some weight
Real nice. The fillet seems a bit small to me. But thats only a gut feeling comparing the big fillers on most commercial masts.
Fillet ist 12 small layers in the Corner and additional 18 bigger layers 245g/m²
I hope, its enough
1 Like
How much does it weigh and length? I thought about trying a mast build eventually since they are so ridiculously priced. What did you find most challenging?
Mast 80cm 1400g
Motormount additional 55g
Mastplate and fillet 310g
Overall 1775g with a thin Topcoat
Cant say, what was most challenging, it was overall more work, organising plenty layers, Position of everything, thickness, sanding, stuffing in Vakuum, without everything moving around or cutting the bag (sharp edges) and much more.
Everything doable, but i admit to have some expierience with some simpler stuff Like a Board
1 Like
wow! this is a master piece!
No issues so far.
I’m impressed, that a 50 bucks Chinabell is able to power up this tiny efoil.
OK, start is really challanging, but works.

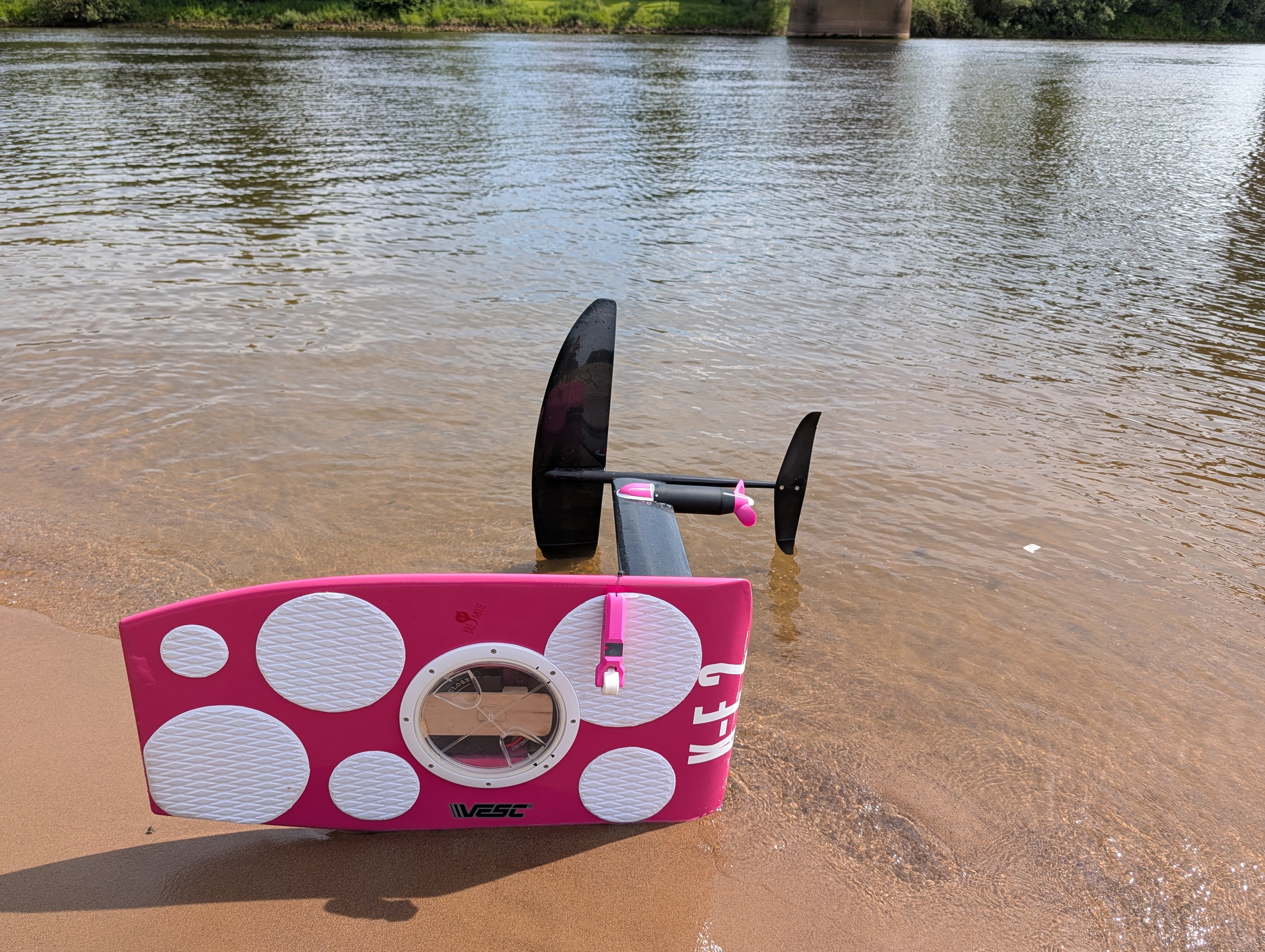

Mounted the short fuselage and the small backwing. Works like a charme.
The downside of the Outrunner is: It sounds terrible and that’s a bit annoying.
Daughter wants a pink one with white dots (-:
6 Likes
Nice work. That is a really small motor wow.
And here is a log with that motor and my 6384 1.1 Prop on my 88cm Board
3 Likes
After testing a Prototyp of the Bremote Nano, i knew, this one was made for Pinky. The reception is incredible. Even though the receiver is burried in in middle of the board, inside of Carbon. The board is submerged 50cm? No Problem. As long as the remote control is in the air, it doesn’t matter, signal loss is no longer an issue.
I am sad to tell, that I sacrified the remote control the the god of the river Fulda and i hope, @ludwig_bre would ever forgive me.

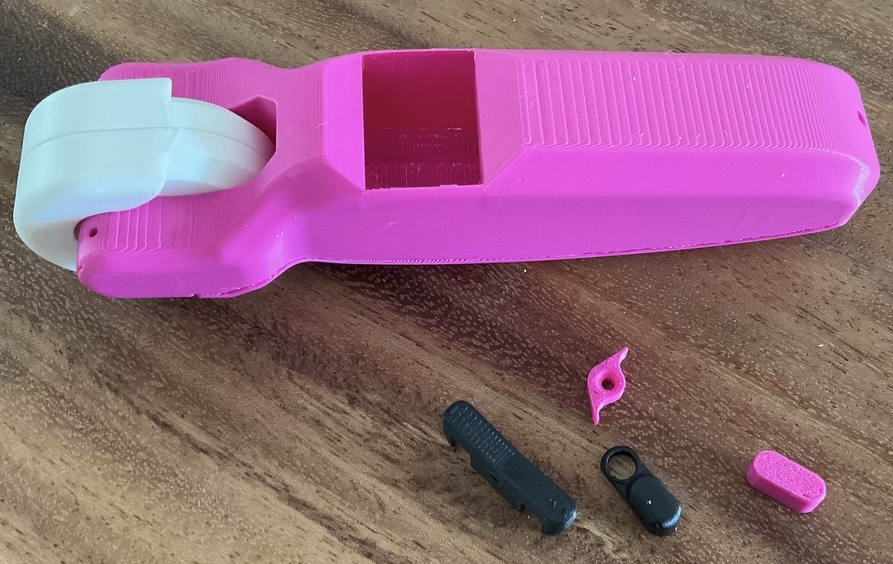

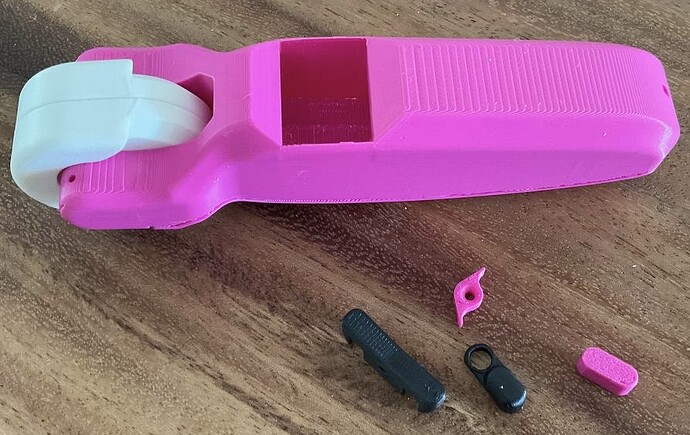

Printing the new Nano2 was a piece of cake, the result in 0,12mm layerhight was amazing. The only drama was to remove the support.
Assembly information
Now we just have to wait until the sets are available in the shop
edit/update:
Finally got a working one again
